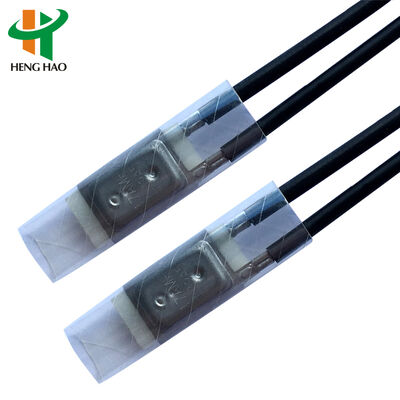

17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch

17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch
17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch 17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch 17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch 17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch 17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch

Large Image :  17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.25
Contact Now

17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch

Description
Model NO.: 17AMH Type: Temperature Sensor
Control Method: Mechanical Material: Steel Plastic
Life Cycle: 10000 Times Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life: AC-125V 15A, AC-250V 10A More Than 10,000 Cycles; AC-125V 5A More Than 100,000 Cycles Temperature Range: 50-180°C
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10~45 Degrees In Off Temperature Decline
Working Times: Over 10000 Times Trip Temperature: 55-180°C
Terminal Direction: A: Same Direction / B: Opposite Direction OFF Tolerance: 5
Connecting Wire: Different Types Available
Highlight:

17AM thermal protector thermostat

,

250V 10A temperature controller

,

50-150C thermal cut off switch

17AMH Temperature Controller Sensor Thermostat
Compact thermal protector with quick and accurate action, featuring customizable lead configurations to meet specific application requirements.
Product Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A - over 10,000 cycles; AC-125V 5A - over 100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Cycles: Over 10,000 operations
Product Coding System
17AM_XXX_A/B_5_A,B,C,D...Z
• 17AMH: Product series identifier
• XXX: Trip temperature in °C code
• A/B: Terminal orientation (A: same direction, B: opposite direction)
• 5: OFF temperature tolerance code
• A,B,C,D...Z: Connecting wire type
Temperature Code Reference
Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038
Product Diagram
17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch 0
Applications
The 17AM thermal protector is designed for various industrial and commercial applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and household appliances.

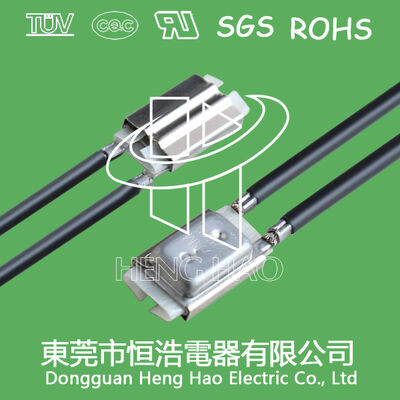

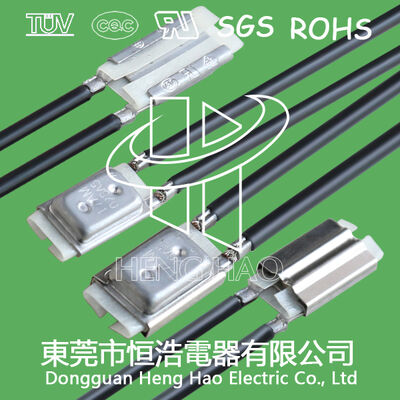

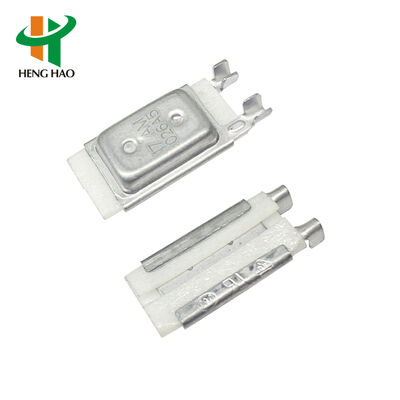

17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch 1 17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch 2 17amh Temperature Controller Sensor Thermostat 17amh 250V 10A 50-150c Thermal Cut off Switch 3
