17amh Thermal Protector Thermostat 17am CQC TUV UL Temperature Controller Switch Sensor

Large Image : 17amh Thermal Protector Thermostat 17am CQC TUV UL Temperature Controller Switch Sensor

Product Details:

Certification:	TUV

Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	0.35

Contact Now

17amh Thermal Protector Thermostat 17am CQC TUV UL Temperature Controller Switch Sensor

Description

Model NO.:	17AM	Type:	Temperature Sensor
Control Method:	Mechanical	Material:	Stainless Steel
Life Cycle:	10000 Times	Electrical Rating:	AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles:	AC-125V 15A, AC-250V 10A More Than 10,000 Cycles; AC-125V 5A More Than 100,000 Cycles	Operating Temperature:	50-180° C
Temperature Tolerance:	± 2° C± 3° C± 5° C	Reset Temperature:	10~45 Degrees In Off Temperature Decline
Working Times:	Over 10000 Times	Trip Temperature Code:	55° C (18) To 180° C (43)
Terminal Direction:	A: Same Direction / B: Opposite Direction	OFF Tolerance Code:	5
Connecting Wire Type:	A, B, C, D...Z
Highlight:	17AMH thermal protector thermostat , 17AM temperature controller switch , CQC TUV UL thermal sensor

17AMH Thermal Protector Thermostat

High-quality 17AMH thermal protector and thermostat designed as a direct replacement for KLIXON 17AM thermal protectors. This temperature controller switch sensor features compact design, quick response, and precise operation.

Product Overview

The 17AMH is an excess-current thermal protector with compact design that delivers quick and accurate action. Custom lead configurations available to meet specific customer requirements.

Technical Specifications

Electrical Ratings

AC-125V 15A
AC-250V 10A
DC-16V 20A

Performance Characteristics

Contact Life Cycles: AC-125V 15A, AC-250V 10A - over 10,000 cycles
Contact Life Cycles: AC-125V 5A - over 100,000 cycles
Operating Temperature Range: 50-180°C
Temperature Tolerance: ±2°C, ±3°C, ±5°C
Reset Temperature: 10-45°C below trip temperature
Working Times: Over 10,000 operations

Code System Explanation

17AMH XXX A / B 5 A, B, C, D...Z

17AMH: Product series identifier
XXX: Trip off temperature in °C code
A / B: A - Terminals in same direction / B - Terminals in opposite direction
5: OFF Temperature Tolerance Code
A, B, C, D...Z: Different types of connecting wire

Temperature Code Reference

Temperature (°C)	Code	Temperature (°C)	Code	Temperature (°C)	Code	Temperature (°C)	Code
55°C	18	90°C	25	125°C	32	160°C	39
60°C	19	95°C	26	130°C	33	165°C	40
65°C	20	100°C	27	135°C	34	170°C	41
70°C	21	105°C	28	140°C	35	175°C	42
75°C	22	110°C	29	145°C	36	180°C	43
80°C	23	115°C	30	150°C	37
85°C	24	120°C	31	155°C	38

Applications

The 17AMH thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and numerous household appliances.

Certifications & Approvals: UL, CQC, VDE, and RoHS certified

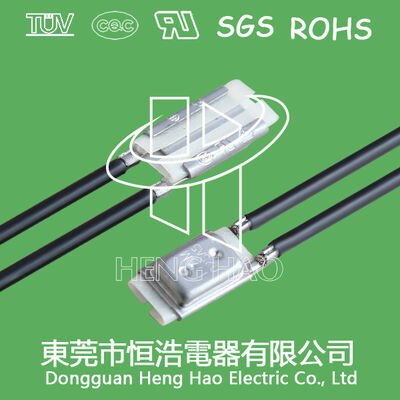

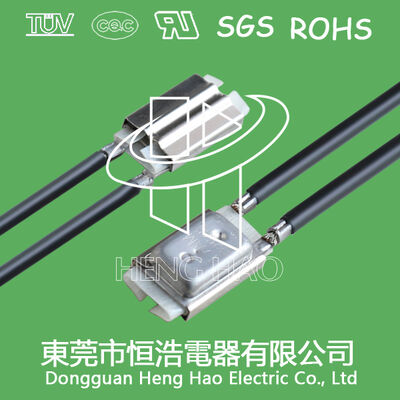

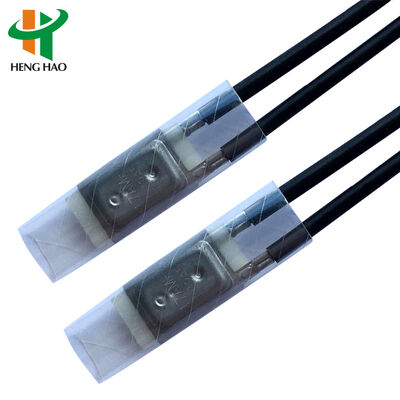

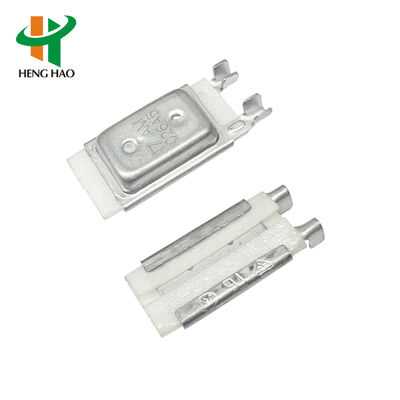

Product Images
