17amh Temperature Sensor Switch 17amh Heating Thermostat

17amh Temperature Sensor Switch 17amh Heating Thermostat
17amh Temperature Sensor Switch 17amh Heating Thermostat 17amh Temperature Sensor Switch 17amh Heating Thermostat 17amh Temperature Sensor Switch 17amh Heating Thermostat 17amh Temperature Sensor Switch 17amh Heating Thermostat 17amh Temperature Sensor Switch 17amh Heating Thermostat

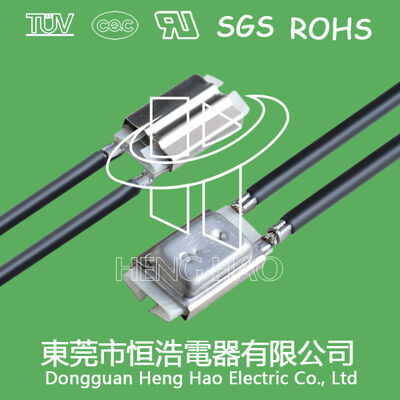

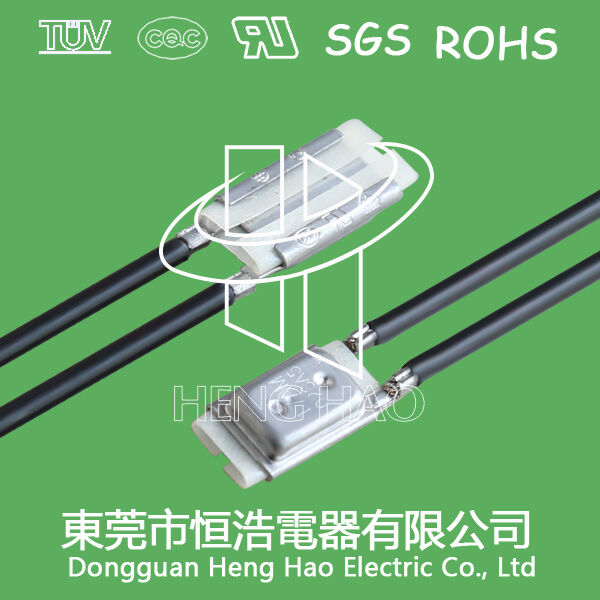

Large Image :  17amh Temperature Sensor Switch 17amh Heating Thermostat

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.2
Contact Now

17amh Temperature Sensor Switch 17amh Heating Thermostat

Description
Model Number: 17AMH Type: Temperature Sensor
Control Method: Mechanical Material: Steel Plastic
Life Cycle: 10000 Times Voltage Rating: 250V
Current Rating: 10A Temperature Range: 50-180°C
Case Material: Metal Contact Type: Normally Closed
AC Voltage: 125V 15A; 250V 10A DC Voltage: 16V 20A
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10~45°C
Contact Life: 10000 Cycles
Highlight:

17AMH temperature sensor switch

,

17AMH heating thermostat

,

17AM thermal protector switch

17AMH Temperature Sensor Switch & Heating Thermostat
17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector / KLIXON 17AM Thermal Protector Replacement
Product Overview & Structure
The 17AM is an excess-current thermal protector featuring compact design and quick, accurate action. We can rivet different types of leads according to customers' specific requirements.
Technical Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Times: Over 10,000 cycles
Product Coding System
17AM_XXX_A/B_5_A,B,C,D...Z
17AMH: Product series number
XXX: Trip off temperature in °C code
A/B: A: Terminals in same direction / B: Terminals in opposite direction
5: OFF Temperature Tolerance Code
A,B,C,D...Z: Different types of connecting wire
Trip Off Temperature Codes
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Applications
The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and numerous household appliances.
Technical Performance Graphs
17amh Temperature Sensor Switch 17amh Heating Thermostat 0 17amh Temperature Sensor Switch 17amh Heating Thermostat 1 17amh Temperature Sensor Switch 17amh Heating Thermostat 2 17amh Temperature Sensor Switch 17amh Heating Thermostat 3 17amh Temperature Sensor Switch 17amh Heating Thermostat 4 17amh Temperature Sensor Switch 17amh Heating Thermostat 5
Certifications: This product has UL, CQC, VDE and RoHS certification approval.
