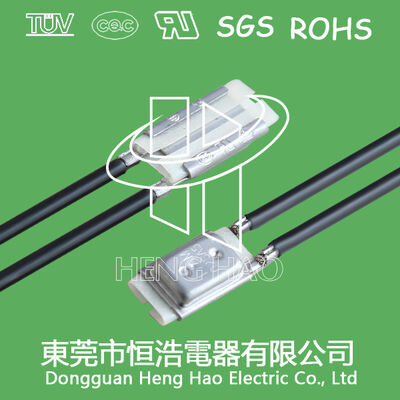

17amh Bimetal Temperature Switch, 17amh Thermal Limited Switch

Large Image : 17amh Bimetal Temperature Switch, 17amh Thermal Limited Switch

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	0.25

Contact Now

17amh Bimetal Temperature Switch, 17amh Thermal Limited Switch

Description

Model NO.:	17AMH	Type:	Temperature Sensor
Control Method:	Mechanical	Material:	Steel Plastic
Life Cycle:	10000 Times	Voltage & Current:	250V 10A
Temperature Range:	50-180°C	Contact Type:	Normally Closed
Case:	Metal	Electrical Rating:	AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles:	AC-125V 15A, AC-250V 10A More Than 10,000 Cycles; AC-125V 5A More Than 100,000 Cycles	Temperature Tolerance:	±2°C±3°C±5°C
Reset Temperature:	10~45°C	Working Times:	Over 10000 Times
Trip Off Temperature:	55-180°C
Highlight:	17amh bimetal temperature switch , 17amh thermal limited switch , 17am thermal protector with warranty

17AMH Bimetal Temperature Switch & Thermal Limit Switch

17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector - Compatible replacement for KLIXON 17AM thermal protector

Product Overview & Design

The 17AM is an excess-current thermal protector featuring compact design with quick and accurate action. Available with various lead configurations to meet specific customer requirements.

Technical Specifications

Electrical Ratings: AC-125V 15A; AC-250V 10A; DC-16V 20A
Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
Operating Temperature Range: 50-180°C
Temperature Tolerance: ±2°C, ±3°C, ±5°C
Reset Temperature: 10-45°C below trip temperature
Working Cycles: Over 10,000 operations

Product Coding System

17AM_XXX_A/B_5_A,B,C,D...Z
17AMH: Product series
XXX: Trip temperature in °C code
A/B: A: Terminals same direction / B: Terminals opposite direction
5: OFF temperature tolerance code
A,B,C,D...Z: Connecting wire type

Trip Temperature Codes

Temperature (°C)	Code	Temperature (°C)	Code	Temperature (°C)	Code	Temperature (°C)	Code
55°C	018	90°C	025	125°C	032	160°C	039
60°C	019	95°C	026	130°C	033	165°C	040
65°C	020	100°C	027	135°C	034	170°C	041
70°C	021	105°C	028	140°C	035	175°C	042
75°C	022	110°C	029	145°C	036	180°C	043
80°C	023	115°C	030	150°C	037
85°C	024	120°C	031	155°C	038

Applications

The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and household appliances.

Technical Performance Graphs

Certifications: UL, CQC, VDE and RoHS certified
Manufacturer: Professional thermostat and thermal protector supplier
