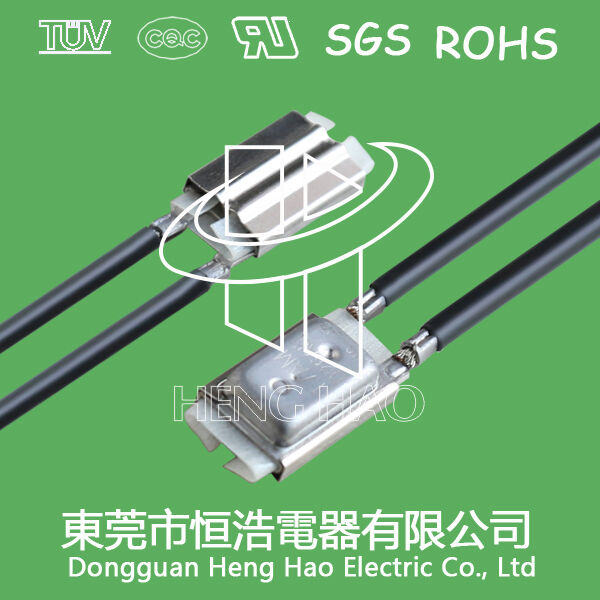

17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch

17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch
17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch 17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch 17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch 17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch 17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch

Large Image :  17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.26
Contact Now

17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch

Description
Model NO.: 17AMH Type: Temperature Sensor
Material: Steel Plastic Life Cycle: 10000 Times
Voltage: 250V Current: 10A
Temperature Range: 50-180°C Contact Type: Normally Closed
AC Voltage: 125V 15A; 250V 10A DC Voltage: 16V 20A
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10~45°C
Working Times: Over 10000 Times Trip Off Temperature: 55-180°C
Contact Life Cycles: 10000 Cycles (AC-125V 15A, AC-250V 10A); 100000 Cycles (AC-125V 5A)
Highlight:

17AM thermal protector switch

,

motor temperature thermostat

,

overheat protection temperature switch

17AMH Thermostat - Over Heat Thermal Protector Motor Temperature Switch
Product Overview
The 17AMH is an excess-current thermal protector featuring compact design and quick, accurate action. Custom lead configurations are available to meet specific customer requirements.
Technical Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Cycles: Over 10,000 operations
Product Coding System
17AM_XXX_A/B_5_A,B,C,D...Z
17AMH: Product series identifier
XXX: Trip off temperature in °C code
A/B: Terminal orientation (A: same direction, B: opposite direction)
5: OFF temperature tolerance code
A,B,C,D...Z: Connecting wire type identifier
Temperature Code Reference
Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038
Applications
The 17AM thermal protector is designed for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and household appliances.
Product Drawings
17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch 0 17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch 1 17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch 2 17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch 3 17amh Thermostat 17amh Over Heat Themal Protector Motor Temperature Switch 4
