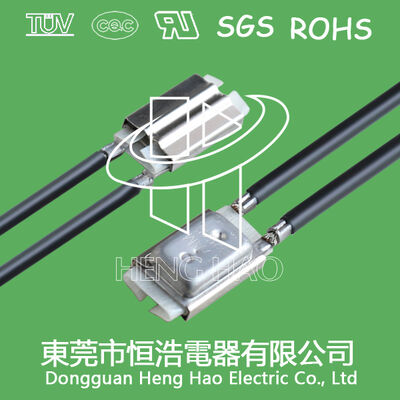

Bimetal Thermal Switch 17am Temperature Protector Thermostat

Bimetal Thermal Switch 17am Temperature Protector Thermostat
Bimetal Thermal Switch 17am Temperature Protector Thermostat Bimetal Thermal Switch 17am Temperature Protector Thermostat Bimetal Thermal Switch 17am Temperature Protector Thermostat Bimetal Thermal Switch 17am Temperature Protector Thermostat Bimetal Thermal Switch 17am Temperature Protector Thermostat

Large Image :  Bimetal Thermal Switch 17am Temperature Protector Thermostat

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.35
Contact Now

Bimetal Thermal Switch 17am Temperature Protector Thermostat

Description
Model NO.: 17AMH Type: Temperature Sensor
Control Method: Mechanical Material: Steel Plastic
Life Cycle: 10000 Times Voltage Current: 250V 10A
Temp. Range: 50-180°C Contact Type: Normally Closed
AC Voltage: 125V 15A DC Voltage: 16V 20A
Temp. Tolerance: ±2°C±3°C±5°C Reset Temp.: 10~45°C
Working Times: Over 10000 Trip Temp. Code: 018-043
Terminal Direction: A/B
Highlight:

bimetal thermal switch 17am

,

temperature protector thermostat

,

17am thermal protector switch

Bimetal Thermal Switch 17AM Temperature Protector Thermostat
Compatible with KLIXON 17AM thermal protector - Also known as 17AMH Thermal Protector / 17AMH Thermostat
Product Overview
The 17AM is an excess-current thermal protector featuring compact design with quick and accurate action. Available with various lead configurations to meet specific customer requirements.
Technical Specifications
  • Electrical Ratings: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Cycles: Over 10,000 times
Product Coding System
17AM _XXX_ _A/B_ _5_ _A,B,C,D...Z_
17AMH: Product series identifier
XXX: Trip off temperature in °C code
A/B: A: Terminals same direction / B: Terminals opposite direction
5: OFF Temperature Tolerance Code
A,B,C,D...Z: Connecting wire type variations
Temperature Code Reference
Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Applications
The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and numerous household appliances.
Product Images
Bimetal Thermal Switch 17am Temperature Protector Thermostat 0 Bimetal Thermal Switch 17am Temperature Protector Thermostat 1 Bimetal Thermal Switch 17am Temperature Protector Thermostat 2 Bimetal Thermal Switch 17am Temperature Protector Thermostat 3 Bimetal Thermal Switch 17am Temperature Protector Thermostat 4 Bimetal Thermal Switch 17am Temperature Protector Thermostat 5
