Temperature Thermostat Manufacturer 17am Thermal Protector

Large Image : Temperature Thermostat Manufacturer 17am Thermal Protector

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	0.26

Contact Now

Temperature Thermostat Manufacturer 17am Thermal Protector

Description

Model NO.:	17AMH	Type:	Temperature Sensor
Control Method:	Mechanical	Material:	Steel Plastic
Life Cycle:	10000 Times	Voltage & Current:	250V 10A
Temp. Range:	50-180c	Contact Type:	Nc Tyoe
Electrical Rating:	AC-125V 15A; AC-250V 10A, DC-16V 20A	Contact Life Cycles:	AC-125V 15A, AC-250V 10A More Than 10,000 Cycles; AC-125V 5A More Than 100,000 Cycles
Temperature Tolerance:	±2°C±3°C±5°C	Reset Temperature:	10~45 Degrees In Off Temperature Decline
Working Times:	Over 10000 Times	Trip Off Temperature:	55-180°C
Terminal Direction:	A: Terminals In The Same Direction / B: Terminals In The Opposite Direction
Highlight:	17AM thermal protector thermostat , temperature control thermal protector , 17AM thermostat with warranty

17AMH Thermal Protector / Temperature Thermostat

The 17AMH thermal protector is a compact, precision-engineered temperature thermostat designed for reliable thermal protection in various electrical applications. This device serves as a direct replacement for KLIXON 17AM thermal protectors.

Product Overview

The 17AM thermal protector features a compact design with quick and accurate response characteristics. Custom lead configurations are available to meet specific customer requirements through riveting different terminal types.

Technical Specifications

Electrical Ratings: AC-125V 15A; AC-250V 10A; DC-16V 20A
Contact Life Cycles: AC-125V 15A / AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
Operating Temperature Range: 50-180°C
Temperature Tolerance: ±2°C, ±3°C, or ±5°C
Reset Temperature: 10-45°C below trip temperature
Working Cycles: Over 10,000 operations

Product Coding System

17AM_XXX_A/B_5_A,B,C,D...Z
• 17AMH: Product series identifier
• XXX: Trip temperature in °C code
• A/B: Terminal orientation (A: same direction, B: opposite direction)
• 5: OFF temperature tolerance code
• A,B,C,D...Z: Connecting wire type specification

Temperature Code Reference

Temperature (°C)	Code	Temperature (°C)	Code	Temperature (°C)	Code	Temperature (°C)	Code
55°C	018	90°C	025	125°C	032	160°C	039
60°C	019	95°C	026	130°C	033	165°C	040
65°C	020	100°C	027	135°C	034	170°C	041
70°C	021	105°C	028	140°C	035	175°C	042
75°C	022	110°C	029	145°C	036	180°C	043
80°C	023	115°C	030	150°C	037
85°C	024	120°C	031	155°C	038

Applications

The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and numerous household appliances requiring reliable thermal protection.

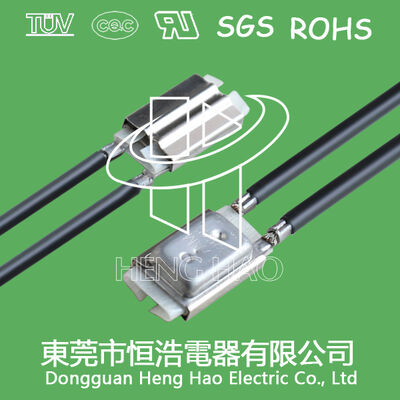

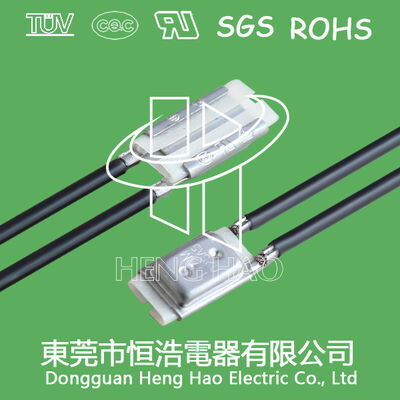

Product Images
