Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector

Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector
Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector

Large Image :  Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.35
Contact Now

Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector

Description
Model NO.: 17AMH Type: Temperature Sensor
Material: Steel Plastic Life Cycle: 10000 Times
Voltage: 250V Current: 10A
Temp. Range: 50-180°C Case: Metal
Contact Type: Normally Closed AC Voltage: 125V 15A; 250V 10A
DC Voltage: 16V 20A Temperature Tolerance: ±2°C±3°C±5°C
Reset Temperature: 10~45°C Working Times: Over 10000 Times
Trip Temperature: 55-180°C
Highlight:

17AM thermal protector switch

,

transformer temperature cut off thermostat

,

thermal protector with warranty

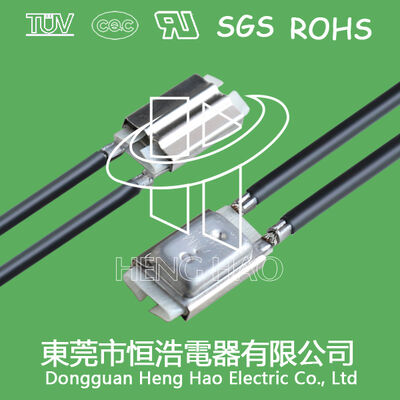

17AMH Thermal Protector / Temperature Cut-off Switch Thermostat
High-performance 17AMH thermal protector designed as a direct replacement for KLIXON 17AM thermal protectors. Features compact design with quick, accurate action and customizable lead configurations.
Product Principle & Structure
The 17AM is an excess-current thermal protector with compact design that provides quick and accurate action. Available with different types of riveted leads according to customer requirements.
Technical Specifications
  • Electrical Ratings: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Times: Over 10,000 operations
Product Coding System
17AM_XXX_A/B_5_A,B,C,D...Z
• 17AMH: Product series
• XXX: Trip off temperature in °C code
• A/B: Terminal direction (A: same direction, B: opposite direction)
• 5: OFF temperature tolerance code
• A,B,C,D...Z: Connecting wire type
Temperature Code Reference
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Applications
Ideal for motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and various household appliances requiring reliable thermal protection.
Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector 0 Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector 1 Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector 2 Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector 3 Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector 4 Temperature Cut off Switch Thermostat for Transformer 17am Thermal Protector 5
Certifications: UL, CQC, VDE and RoHS certified. Professional thermal protector and thermostat supplier.
