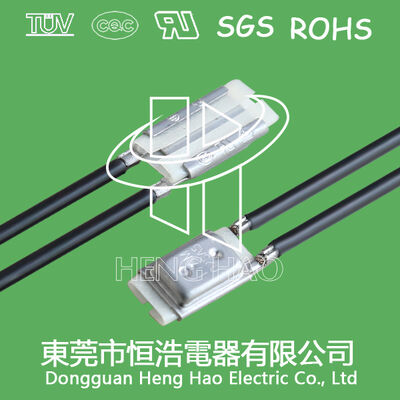

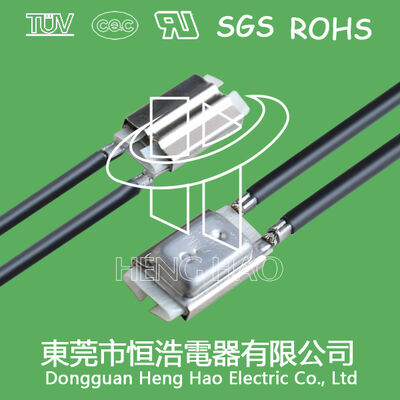

Bimetallic Temperature Switch for Transformer 17am Thermostat

Bimetallic Temperature Switch for Transformer 17am Thermostat
Bimetallic Temperature Switch for Transformer 17am Thermostat Bimetallic Temperature Switch for Transformer 17am Thermostat Bimetallic Temperature Switch for Transformer 17am Thermostat Bimetallic Temperature Switch for Transformer 17am Thermostat Bimetallic Temperature Switch for Transformer 17am Thermostat

Large Image :  Bimetallic Temperature Switch for Transformer 17am Thermostat

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.26
Contact Now

Bimetallic Temperature Switch for Transformer 17am Thermostat

Description
Model NO.: 17AMH Type: Temperature Sensor
Material: Steel Plastic Life Cycle: 10000 Times
Temp. Range: 50-180°C Voltage: 250V
Current: 10A Contact Type: Normally Closed
Case: Metal Contact Life: 10000 Cycles
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10-45°C
Working Times: Over 10000 Trip Temperature: 55-180°C
Terminal Direction: Same/Opposite
Highlight:

bimetallic temperature switch for transformer

,

17am thermostat thermal protector

,

transformer temperature switch with warranty

Bimetallic Temperature Switch for Transformer 17AM Thermostat
17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector / Replacement for KLIXON 17AM Thermal Protector
Product Principle and Design
The 17AM is an excess-current thermal protector featuring a compact design with quick and accurate action. We can rivet different types of leads according to customers' specific requirements.
Technical Specifications
  • Electrical Rating and Currents: AC-125V 15A; AC-250V 10A, DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A - over 10,000 cycles; AC-125V 5A - over 100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip-off temperature
  • Working Times: Over 10,000 cycles
Product Coding System
17AM _XXX_ _A/B_ _5_ _A,B,C,D...Z_
(17AMH): Product series number
(XXX): Trip-off temperature in °C code
(A/B): A: Terminals in same direction / B: Terminals in opposite direction
(5): OFF temperature tolerance code
(A,B,C,D...Z): Different types of connecting wire
Trip-Off Temperature Codes
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038
Applications
The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and various household appliances.
Bimetallic Temperature Switch for Transformer 17am Thermostat 0 Bimetallic Temperature Switch for Transformer 17am Thermostat 1 Bimetallic Temperature Switch for Transformer 17am Thermostat 2 Bimetallic Temperature Switch for Transformer 17am Thermostat 3 Bimetallic Temperature Switch for Transformer 17am Thermostat 4 Bimetallic Temperature Switch for Transformer 17am Thermostat 5
Certifications: This product has UL, CQC, VDE and RoHS certification approval.
Manufacturer: Professional thermostat and thermal protector supplier and manufacturer.
