Temperature Cutout Switch for Transformer

Temperature Cutout Switch for Transformer
Temperature Cutout Switch for Transformer Temperature Cutout Switch for Transformer Temperature Cutout Switch for Transformer Temperature Cutout Switch for Transformer Temperature Cutout Switch for Transformer

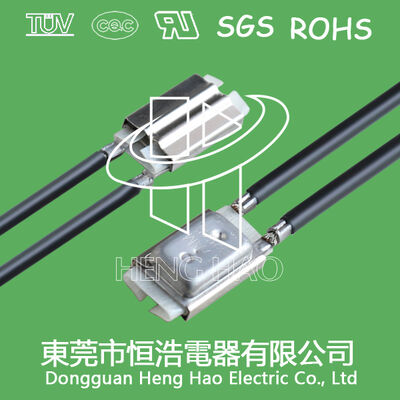

Large Image :  Temperature Cutout Switch for Transformer

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.25
Contact Now

Temperature Cutout Switch for Transformer

Description
Model NO.: 17AMH Material: Steel Plastic
Life Cycle: 10000 Times Voltage: 250V
Current: 10A Temp. Range: 50-180°C
Contact Type: Normally Closed AC Voltage: 125V 15A; 250V 10A
DC Voltage: 16V 20A Contact Life: 10000 Cycles (AC-250V 10A)
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10~45°C
Working Times: Over 10000 Times Trip Off Temp: 55-180°C
Terminal Direction: Same/Opposite
Highlight:

transformer temperature cutout switch

,

17AM thermal protector switch

,

thermal cutout switch for transformers

Temperature Cutout Switch for Transformer
17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector
Compatible replacement for KLIXON 17AM thermal protector
Product Overview
The 17AM thermal protector features a compact design with quick and accurate action capabilities. This excess-current thermal protector can be customized with different types of leads according to specific customer requirements.
Technical Specifications
  • Electrical Ratings: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C options available
  • Reset Temperature: 10-45°C below trip temperature
  • Working Cycles: Over 10,000 operations
Product Coding System
17AM_XXX_A/B_5_A,B,C,D...Z
17AMH: Product series identifier
XXX: Trip off temperature in °C code
A/B: Terminal orientation (A: same direction, B: opposite direction)
5: OFF temperature tolerance code
A,B,C,D...Z: Connecting wire type designation
Temperature Code Reference
Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Applications
The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and numerous household appliances.

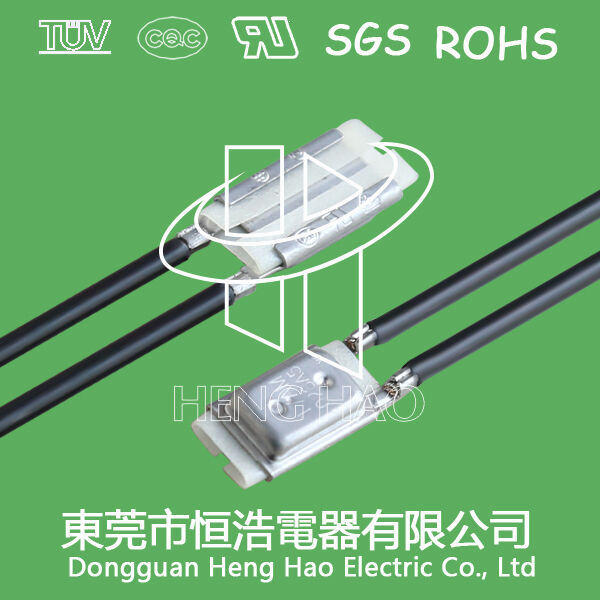

Product Images
Temperature Cutout Switch for Transformer 0 Temperature Cutout Switch for Transformer 1 Temperature Cutout Switch for Transformer 2 Temperature Cutout Switch for Transformer 3 Temperature Cutout Switch for Transformer 4 Temperature Cutout Switch for Transformer 5
