Motor Thermal Protector 17am 250V 10A 50-180c Thermostat

Motor Thermal Protector 17am 250V 10A 50-180c Thermostat
Motor Thermal Protector 17am 250V 10A 50-180c Thermostat Motor Thermal Protector 17am 250V 10A 50-180c Thermostat Motor Thermal Protector 17am 250V 10A 50-180c Thermostat Motor Thermal Protector 17am 250V 10A 50-180c Thermostat Motor Thermal Protector 17am 250V 10A 50-180c Thermostat

Large Image :  Motor Thermal Protector 17am 250V 10A 50-180c Thermostat

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.35
Contact Now

Motor Thermal Protector 17am 250V 10A 50-180c Thermostat

Description
Model NO.: 17AMH Material: Steel Plastic
Life Cycle: 10000 Times AC Voltage: 125V, 250V
DC Voltage: 16V AC Current: 15A, 10A
DC Current: 20A Temperature Range: 50-180°C
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10~45°C
Contact Life: 10000 Cycles Trip Off Codes: 018-043
Terminal Direction: Same/Opposite OFF Tolerance: Code 5
Connecting Wire: Various Types
Highlight:

17AM thermal protector thermostat

,

motor thermal protector 250V

,

10A thermal switch 50-180C

Motor Thermal Protector 17AM 250V 10A 50-180°C Thermostat
The 17AM thermal protector features a compact design with quick and accurate action for reliable motor protection. Custom lead configurations available to meet specific requirements.
Product Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Cycles: Over 10,000 operations
Product Coding System
17AM _XXX_ _A/B_ _5_ _A,B,C,D...Z
  • 17AM: Product series identifier
  • XXX: Trip temperature in °C code
  • A/B: Terminal orientation (A: same direction, B: opposite direction)
  • 5: OFF temperature tolerance code
  • A,B,C,D...Z: Connecting wire type identifier
Temperature Code Reference
Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Product Diagram
Motor Thermal Protector 17am 250V 10A 50-180c Thermostat 0
Applications
The 17AM thermal protector is designed for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and household appliances.

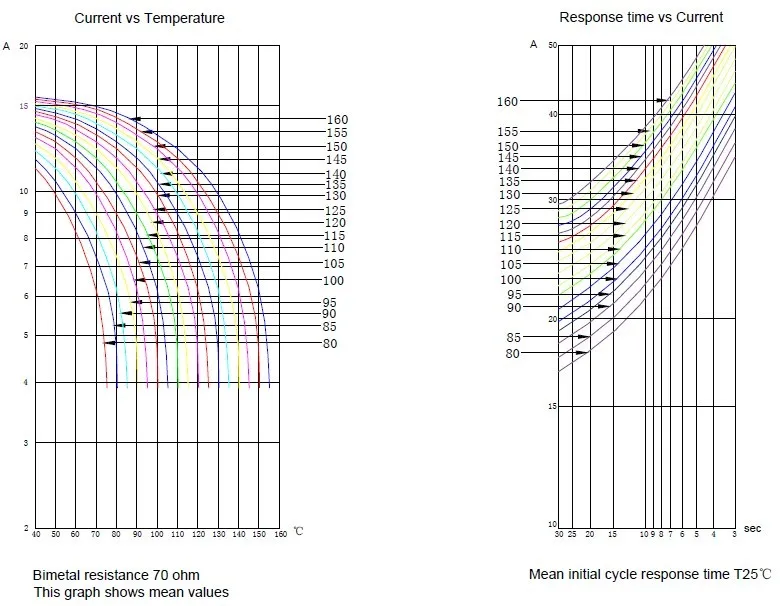

Performance Characteristics
A/°C performance graph for 17AM thermal protector Motor Thermal Protector 17am 250V 10A 50-180c Thermostat 2 Motor Thermal Protector 17am 250V 10A 50-180c Thermostat 3 Motor Thermal Protector 17am 250V 10A 50-180c Thermostat 4
