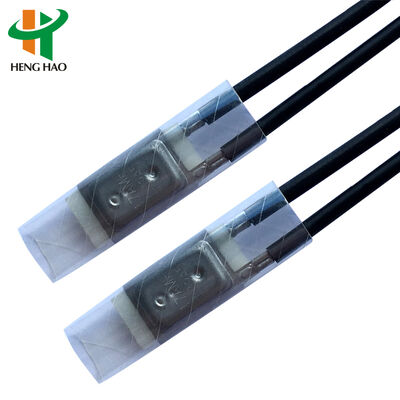

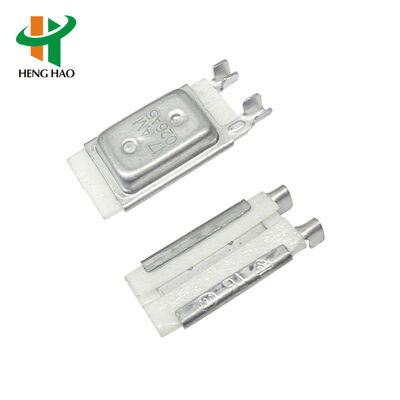

Thermostat for Transformer 17am Thermal Protector 250V 10A Temperature Switch

Large Image : Thermostat for Transformer 17am Thermal Protector 250V 10A Temperature Switch

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	0.2

Contact Now

Thermostat for Transformer 17am Thermal Protector 250V 10A Temperature Switch

Description

Model NO.:	17AMH	Material:	Steel Plastic
Life Cycle:	10000 Times	Electrical Rating:	AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life:	AC-125V 15A, AC-250V 10A More Than 10,000 Cycles; AC-125V 5A More Than 100,000 Cycles	Temperature Range:	50-180°C
Temperature Tolerance:	±2°C±3°C±5°C	Reset Temperature:	10~45 Degrees In Off Temperature Decline
Working Times:	Over 10000 Times	Trip Off Temperature:	55°C To 180°C
Terminal Direction:	A: Same Direction / B: Opposite Direction	OFF Tolerance Code:	5
Connecting Wire Types:	A, B, C, D...Z	Transport Package:	1000 PCS Per Carton
Production Capacity:	100000000000 Pieses /Year
Highlight:	17AM thermal protector thermostat , 250V 10A temperature switch , transformer thermostat thermal protector

17AM Thermal Protector - Transformer Temperature Switch

The 17AMH thermal protector is a compact excess-current thermal protection device with quick and accurate action. We can rivet different types of leads according to customer requirements.

Specifications

Electrical Rating: AC-125V 15A; AC-250V 10A; DC-16V 20A
Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
Operating Temperature Range: 50-180°C
Temperature Tolerance: ±2°C, ±3°C, ±5°C
Reset Temperature: 10-45°C below trip temperature
Working Times: Over 10,000 cycles

Product Coding System

17AM_XXX_A/B_5_A,B,C,D...Z

17AMH: Product series number
XXX: Trip off temperature in °C code
A/B: A: Terminals in same direction / B: Terminals in opposite direction
5: OFF temperature tolerance code
A,B,C,D...Z: Different types of connecting wire

Trip Off Temperature Codes

Degrees °C	Code	Degrees °C	Code	Degrees °C	Code	Degrees °C	Code
55°C	018	90°C	025	125°C	032	160°C	039
60°C	019	95°C	026	130°C	033	165°C	040
65°C	020	100°C	027	135°C	034	170°C	041
70°C	021	105°C	028	140°C	035	175°C	042
75°C	022	110°C	029	145°C	036	180°C	043
80°C	023	115°C	030	150°C	037
85°C	024	120°C	031	155°C	038

Applications

The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and various household appliances.

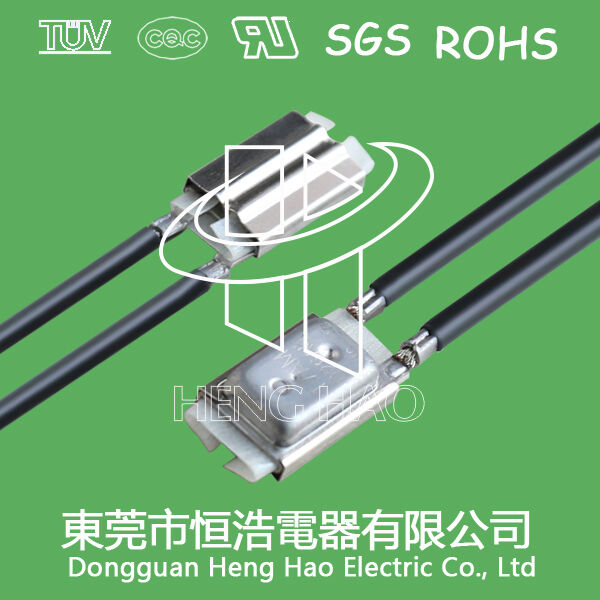

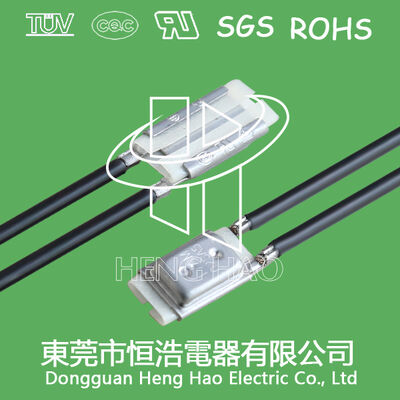

Product Images
