Temperature Controller Switch for Transformer 17am038A5 17am039A5

Temperature Controller Switch for Transformer 17am038A5 17am039A5
Temperature Controller Switch for Transformer 17am038A5 17am039A5 Temperature Controller Switch for Transformer 17am038A5 17am039A5 Temperature Controller Switch for Transformer 17am038A5 17am039A5 Temperature Controller Switch for Transformer 17am038A5 17am039A5 Temperature Controller Switch for Transformer 17am038A5 17am039A5

Large Image :  Temperature Controller Switch for Transformer 17am038A5 17am039A5

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.35
Contact Now

Temperature Controller Switch for Transformer 17am038A5 17am039A5

Description
Model NO.: 17AMH Contact Type: Normally Closed Or Normally Open
Switch Type: Auto Reset Or Manual Reset Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles: AC-125V 15A, AC-250V 10A More Than 10,000 Cycles; AC-125V 5A More Than 100,000 Cycles Operating Temperature: 50-180°C
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10~45 Degrees In Off Temperature Decline
Working Times: Over 10000 Times Trip Off Temperature: 55°C To 180°C (see Code Table)
Terminal Direction: Same Or Opposite OFF Temperature Tolerance: Code 5
Connecting Wire Types: A, B, C, D...Z Transport Package: 1000 PCS Per Carton
Production Capacity: 100000000000 Pieces/Year
Highlight:

17AM thermal protector switch

,

temperature controller for transformer

,

17am038A5 thermal protector switch

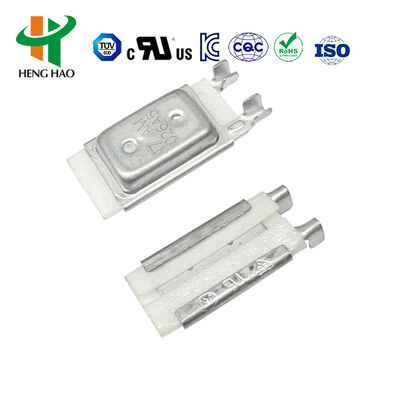

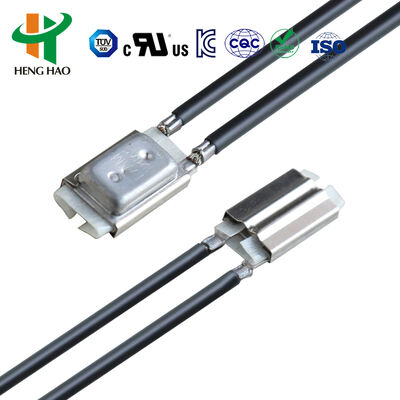

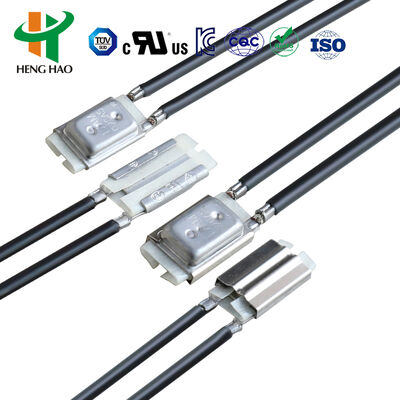

17AMH Thermal Protector / Thermostat
High-performance temperature controller switch designed for transformers and electrical equipment, compatible with models 17AM038A5 and 17AM039A5. This thermal protector serves as a reliable alternative to KLIXON 17AM thermal protectors.
Product Overview
The 17AM series features an excess-current thermal protector with compact design, delivering quick and accurate temperature response. Custom lead configurations available to meet specific customer requirements.
Temperature Controller Switch for Transformer 17am038A5 17am039A5 0 Temperature Controller Switch for Transformer 17am038A5 17am039A5 1 Temperature Controller Switch for Transformer 17am038A5 17am039A5 2
Technical Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A - over 10,000 cycles; AC-125V 5A - over 100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Cycles: Over 10,000 operations
Product Coding System
17AM _XXX_ _A/B_ _5_ _A,B,C,D...Z_
• 17AMH: Product series identifier
• XXX: Trip temperature in °C code
• A/B: Terminal orientation (A: same direction, B: opposite direction)
• 5: OFF temperature tolerance code
• A,B,C,D...Z: Connecting wire type variations
Temperature Code Reference
Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Applications
Ideal for various electrical applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and household appliances.
Performance Characteristics
The 17AM thermostat features optimized A/°C and A/T graph performance for reliable thermal protection across the operating range.
Certified with UL, CQC, VDE and RoHS approvals. Professional thermal protector and thermostat supplier and manufacturer.
Temperature Controller Switch for Transformer 17am038A5 17am039A5 3 Temperature Controller Switch for Transformer 17am038A5 17am039A5 4
