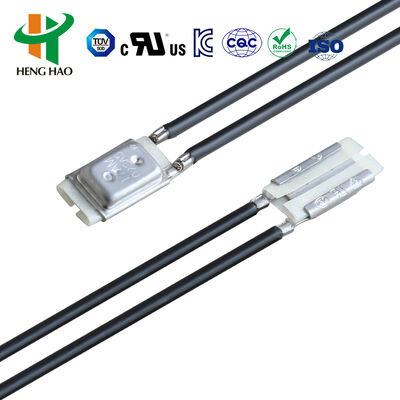

Snap-Action Thermostat for Laminator 17am022A5 17am023A5

Snap-Action Thermostat for Laminator 17am022A5 17am023A5
Snap-Action Thermostat for Laminator 17am022A5 17am023A5 Snap-Action Thermostat for Laminator 17am022A5 17am023A5 Snap-Action Thermostat for Laminator 17am022A5 17am023A5 Snap-Action Thermostat for Laminator 17am022A5 17am023A5 Snap-Action Thermostat for Laminator 17am022A5 17am023A5

Large Image :  Snap-Action Thermostat for Laminator 17am022A5 17am023A5

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.35
Contact Now

Snap-Action Thermostat for Laminator 17am022A5 17am023A5

Description
Model NO.: 17AMH Contact Type: Normally Closed Or Normally Open
Switch Type: Auto Reset Or Manual Reset Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles: AC-125V 15A, AC-250V 10A More Than 10,000 Cycles; AC-125V 5A More Than 100,000 Cycles Operating Temperature: 50-180°C
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10~45 Degrees In Off Temperature Decline
Working Times: Over 10000 Times Trip Off Temperature: 55-180°C (see Code Table)
Terminal Direction: A: Same Direction / B: Opposite Direction OFF Temperature Tolerance: Code 5
Connecting Wire Types: A, B, C, D...Z Transport Package: 1000 PCS Per Carton
Production Capacity: 100000000000 Pieces/Year
Highlight:

Snap-action thermostat for laminator

,

17AM thermal protector switch

,

Laminator thermostat with warranty

Snap-Action Thermostat for Laminator 17AM022A5 17AM023A5
17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector - Compatible replacement for KLIXON 17AM thermal protector

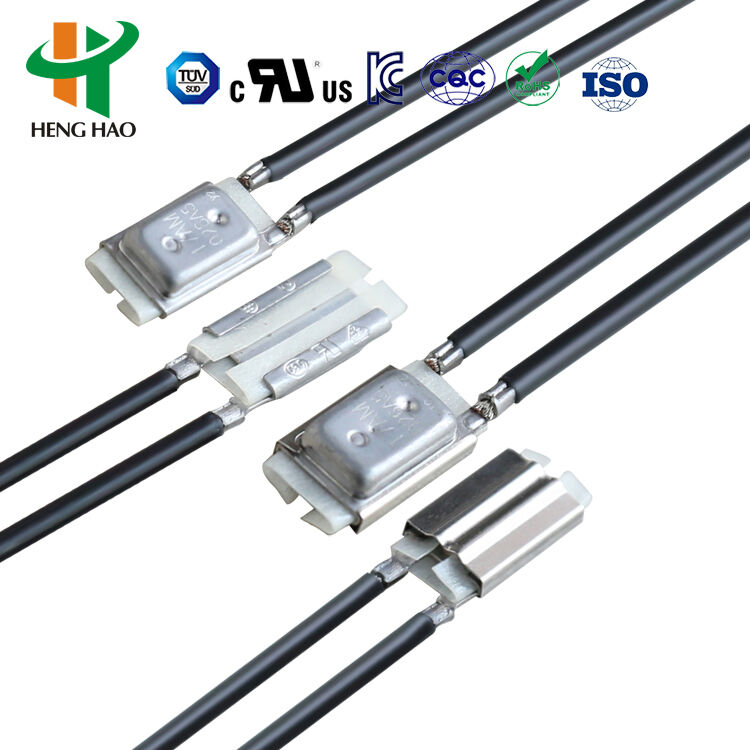

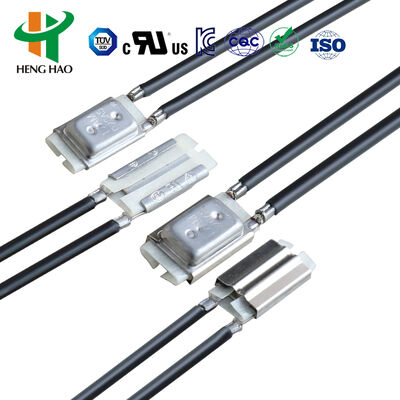

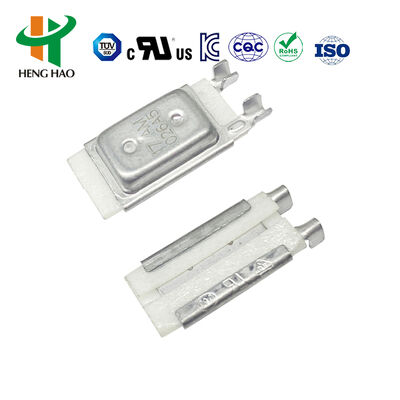

Snap-Action Thermostat for Laminator 17am022A5 17am023A5 0 Snap-Action Thermostat for Laminator 17am022A5 17am023A5 1 Snap-Action Thermostat for Laminator 17am022A5 17am023A5 2
The 17AM is an excess-current thermal protector featuring compact design with quick and accurate action. Custom lead configurations available to meet specific customer requirements.
Product Specifications
  • Electrical Ratings: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Cycles: Over 10,000 operations
Product Coding System
17AM _XXX_ _A/B_ _5_ _A,B,C,D...Z_
(17AMH): Product series identifier
(XXX): Trip temperature in °C code
(A/B): Terminal orientation (A: same direction, B: opposite direction)
(5): OFF temperature tolerance code
(A,B,C,D...Z): Connecting wire type
Trip Temperature Codes
Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code Temperature (°C) Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Applications
The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp ballasts, transformers, laminators, lighting systems, cover sealing machines, and a wide range of household appliances.
Performance Characteristics
Snap-Action Thermostat for Laminator 17am022A5 17am023A5 3 Snap-Action Thermostat for Laminator 17am022A5 17am023A5 4
