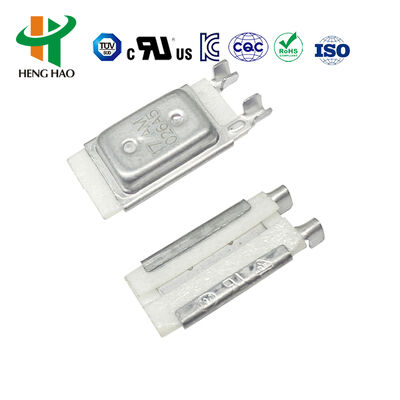

Temperature Thermostat for Laminator 17am026A5 17am027A5

Temperature Thermostat for Laminator 17am026A5 17am027A5
Temperature Thermostat for Laminator 17am026A5 17am027A5 Temperature Thermostat for Laminator 17am026A5 17am027A5 Temperature Thermostat for Laminator 17am026A5 17am027A5 Temperature Thermostat for Laminator 17am026A5 17am027A5 Temperature Thermostat for Laminator 17am026A5 17am027A5

Large Image :  Temperature Thermostat for Laminator 17am026A5 17am027A5

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.35
Contact Now

Temperature Thermostat for Laminator 17am026A5 17am027A5

Description
Model NO.: 17AM Contact Type: Normally Closed Or Normally Open
Switch Type: Auto Reset Or Manual Reset Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles: AC-125V 15A, AC-250V 10A More Than 10,000 Cycles; AC-125V 5A More Than 100,000 Cycles Operating Temperature: 50-180°C
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10~45 Degrees In Off Temperature Decline
Working Times: Over 10000 Times Trip Off Temperature: 55°C To 180°C
Terminal Direction: A: Same Direction / B: Opposite Direction OFF Tolerance Code: 5
Connecting Wire Type: A, B, C, D...…..Z Transport Package: 1000 PCS Per Carton
Production Capacity: 100000000000 Pieces/Year
Highlight:

laminator temperature thermostat 17am026A5

,

thermal protector for laminator 17am027A5

,

17am thermostat with thermal protection

Temperature Thermostat for Laminator 17AM026A5 / 17AM027A5
17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector - Compatible replacement for KLIXON 17AM thermal protector
Product Overview
The 17AM is an excess-current thermal protector featuring compact design with quick and accurate action. Custom lead configurations available to meet specific customer requirements.

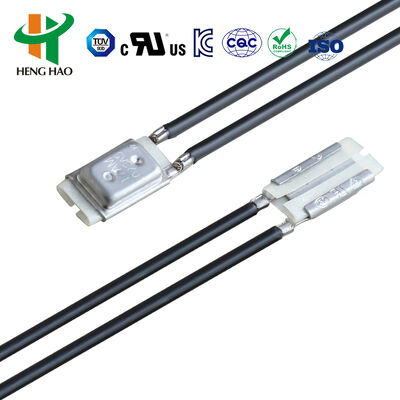

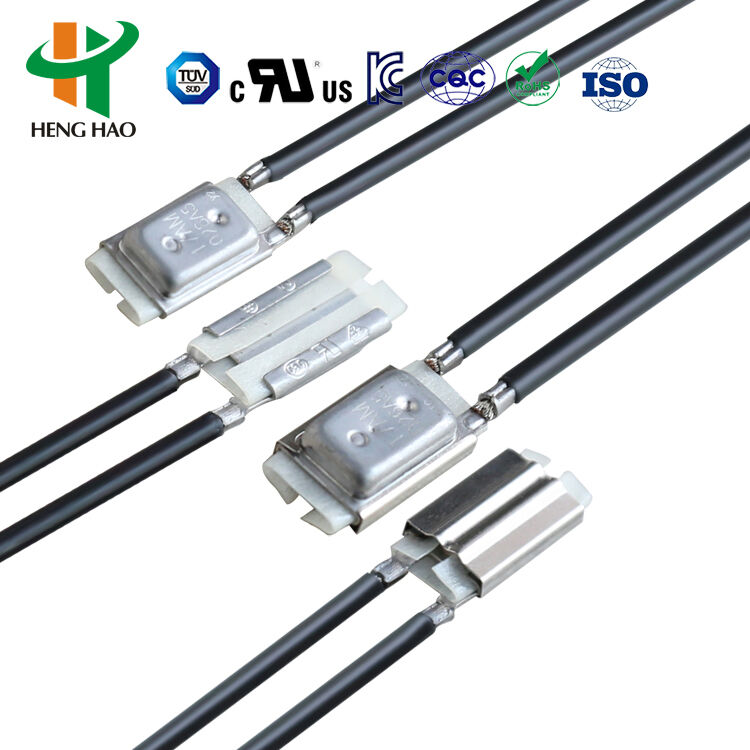

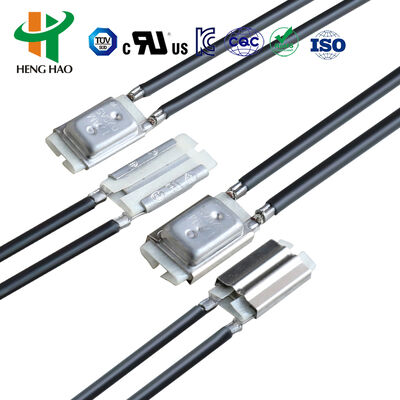

Temperature Thermostat for Laminator 17am026A5 17am027A5 0 Temperature Thermostat for Laminator 17am026A5 17am027A5 1 Temperature Thermostat for Laminator 17am026A5 17am027A5 2
Technical Specifications
  • Electrical Ratings: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Times: Over 10,000 operations
Product Coding System
17AM _XXX_ _A/B_ _5_ _A,B,C,D...Z
(17AMH): Product series
(XXX): Trip off temperature in °C code
(A/B): Terminal direction (A: same direction / B: opposite direction)
(5): OFF temperature tolerance code
(A,B,C,D...Z): Connecting wire type
Temperature Code Reference
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C01890°C025125°C032160°C039
60°C01995°C026130°C033165°C040
65°C020100°C027135°C034170°C041
70°C021105°C028140°C035175°C042
75°C022110°C029145°C036180°C043
80°C023115°C030150°C037
85°C024120°C031155°C038
Applications
The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and household appliances.
Certifications & Compliance
This product holds UL, CQC, VDE and RoHS certification approvals.
Thermostat Manufacturer | Thermal Protector Supplier

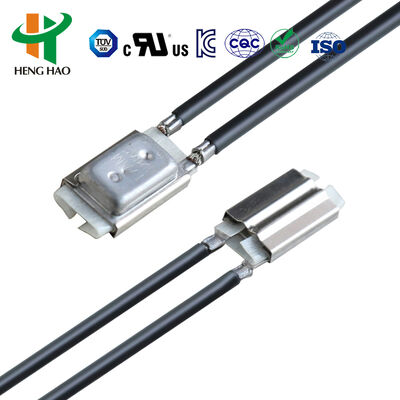

Temperature Thermostat for Laminator 17am026A5 17am027A5 3 Temperature Thermostat for Laminator 17am026A5 17am027A5 4
