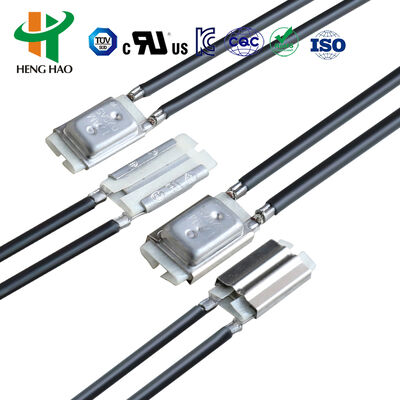

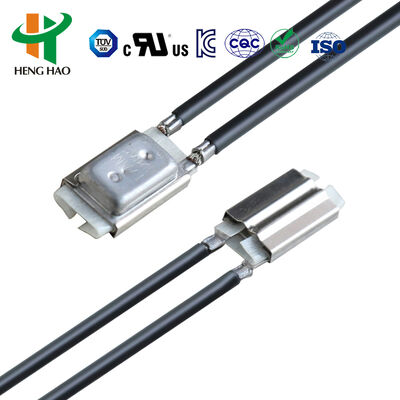

Thermal Cutout Switch for Laminator 17am027A5 17am028A5

Thermal Cutout Switch for Laminator 17am027A5 17am028A5
Thermal Cutout Switch for Laminator 17am027A5 17am028A5 Thermal Cutout Switch for Laminator 17am027A5 17am028A5 Thermal Cutout Switch for Laminator 17am027A5 17am028A5 Thermal Cutout Switch for Laminator 17am027A5 17am028A5 Thermal Cutout Switch for Laminator 17am027A5 17am028A5

Large Image :  Thermal Cutout Switch for Laminator 17am027A5 17am028A5

Product Details: Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.35
Contact Now

Thermal Cutout Switch for Laminator 17am027A5 17am028A5

Description
Model NO.: 17AM Contact Type: Normally Closed Or Normally Open
Switch Type: Auto Reset Or Manual Reset Electrical Rating: AC-125V 15A; AC-250V 10A, DC-16V 20A
Contact Life Cycles: AC-125V 15A, AC-250V 10A More Than 10,000 Cycles; AC-125V 5A More Than 100,000 Cycles Operating Temperature: 50-180°C
Temperature Tolerance: ±2°C±3°C±5°C Reset Temperature: 10~45 Degrees In Off Temperature Decline
Working Times: Over 10000 Times Trip Off Temperature: 55°C To 180°C (see Code Table)
Terminal Direction: Same Or Opposite OFF Temperature Tolerance: Code 5
Connecting Wire Types: A, B, C, D...Z Transport Package: 1000 PCS Per Carton
Production Capacity: 100000000000 Pieces/Year
Highlight:

Thermal cutout switch for laminator

,

17AM thermal protector switch

,

Laminator thermal switch with warranty

Thermal Cutout Switch for Laminator 17AM027A5 / 17AM028A5
17AMH Thermal Protector / 17AMH Thermostat / 17AM Temperature Protector - Compatible with KLIXON 17AM thermal protector

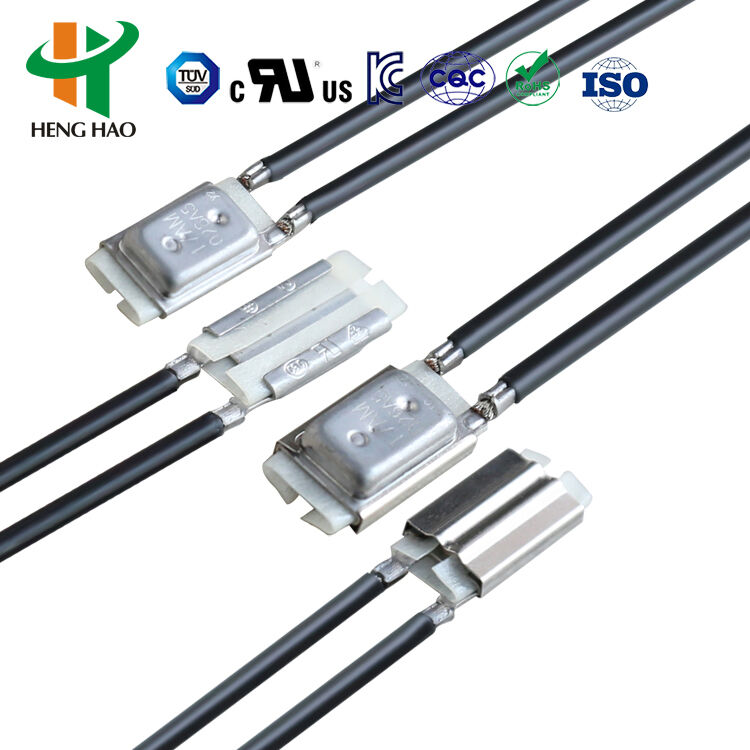

Thermal Cutout Switch for Laminator 17am027A5 17am028A5 0 Thermal Cutout Switch for Laminator 17am027A5 17am028A5 1 Thermal Cutout Switch for Laminator 17am027A5 17am028A5 2
The 17AM is an excess-current thermal protector featuring compact design, quick and accurate action. We can rivet different types of leads according to customer requirements.
Product Specifications
  • Electrical Rating: AC-125V 15A; AC-250V 10A; DC-16V 20A
  • Contact Life Cycles: AC-125V 15A, AC-250V 10A: >10,000 cycles; AC-125V 5A: >100,000 cycles
  • Operating Temperature Range: 50-180°C
  • Temperature Tolerance: ±2°C, ±3°C, ±5°C
  • Reset Temperature: 10-45°C below trip temperature
  • Working Times: Over 10,000 cycles
Product Code System
17AM XXX A/B 5 A,B,C,D...Z
  • 17AMH: Product series number
  • XXX: Trip off temperature in °C code
  • A/B: A: Terminals in same direction / B: Terminals in opposite direction
  • 5: OFF temperature tolerance code
  • A,B,C,D...Z: Different types of connecting wire
Trip Off Temperature Codes
Degrees °C Code Degrees °C Code Degrees °C Code Degrees °C Code
55°C 018 90°C 025 125°C 032 160°C 039
60°C 019 95°C 026 130°C 033 165°C 040
65°C 020 100°C 027 135°C 034 170°C 041
70°C 021 105°C 028 140°C 035 175°C 042
75°C 022 110°C 029 145°C 036 180°C 043
80°C 023 115°C 030 150°C 037
85°C 024 120°C 031 155°C 038
Applications
The 17AM thermal protector is suitable for various applications including motors, fluorescent lamp commutators, transformers, laminators, lighting systems, cover sealing machines, and various household appliances.
Certifications
This product has UL, CQC, VDE and RoHS certification approval.
Thermostat manufacturer and supplier - Your trusted source for thermal protectors and thermostats.

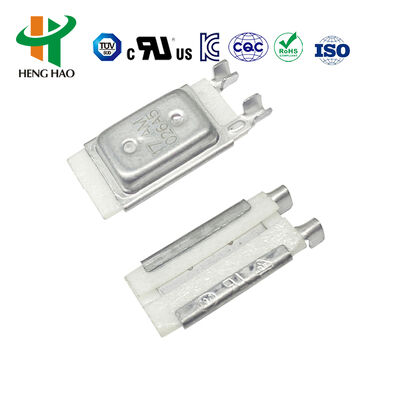

Thermal Cutout Switch for Laminator 17am027A5 17am028A5 3 Thermal Cutout Switch for Laminator 17am027A5 17am028A5 4
