IP68 Protected NTC Thermistor Temperature Sensor with 250V 16A and R25 5K to 100K Platinum Resistor

Large Image : IP68 Protected NTC Thermistor Temperature Sensor with 250V 16A and R25 5K to 100K Platinum Resistor

Product Details:

Place of Origin:	CHINA
Brand Name:	HENGHAO
Certification:	UL
Model Number:	NTC

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.5
Packaging Details:	2000PCS/CARTON
Delivery Time:	10~15WORKDAYS
Payment Terms:	D/P,T/T
Supply Ability:	10000000PER MONTH

Contact Now

IP68 Protected NTC Thermistor Temperature Sensor with 250V 16A and R25 5K to 100K Platinum Resistor

Description

Life Cycle:

100000 Cycles

Voltage & Current:

250V 16A

Contact Type:

Normally Closed Or Normally Open

Switch Type:

Auto Reset Or Manual Reset

Highlight:

250V 16A NTC Thermistor Temperature Sensor

manual reset NTC Thermistor Temperature Sensor

auto reset NTC Thermistor Temperature Sensor

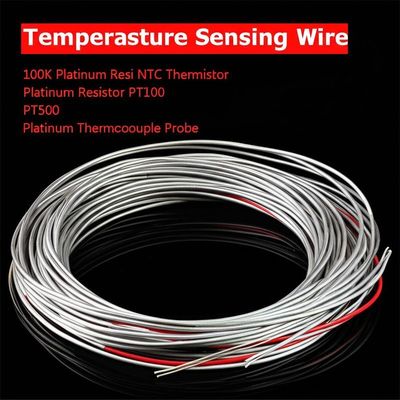

Temperature Sensing Wire 100K Platinum Resistor NTC Thermistor

High-precision platinum resistor thermocouple probe available in PT100, PT500, and PT1000 configurations for accurate temperature measurement across industrial applications.

Technical Specifications

Specification Name	Scope	Detection Condition
R25 (nominal resistance value)	5K, 8K, 10K, 15K to 100K	Constant temperature 25℃±0.05℃
R25 Permissible variance(%)	±1, ±2, ±3, ±5, ±10	Constant temperature 25℃±0.05℃
B25/50 or B25/85 (material coefficient)	2500~5000K	Constant temperature 25℃±0.05℃ / 85℃±0.05℃
B25/50 Value permissible variance(%)	±1, ±2	Constant temperature 25℃±0.05℃ / 50℃±0.05℃
∫ (dissipation coefficient)	≥0.8mw/℃	Static in the air
T (thermal time constant)	≤25S	Static in the air
Ta (Working temperature)	-40℃~+250℃
Pn (rated power)	50mw	Within working temperature

Customization Options

Component	Options

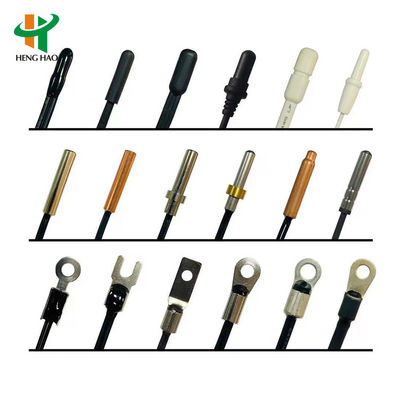

Case and head	Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or custom design
Lead wire	#24 30# 2651, UL4411 28#, double wired conductor, or custom specification
Terminal	Can be riveted according to various terminal requirements

Our Services

Your inquiry will be replied within 12 hours
Well-trained and experienced staff at your service
Unique design products and private mold options available
Strict protection of your private information and design ideas

Frequently Asked Questions

Q1. Can I have a sample order for SENSOR?

A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on order quantity.

Q3. Do you have any MOQ limit for led waterproof string order?

A: At least 1 for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT (3-5 days). Airline and sea shipping also available.

PT100/PT500/PT1000 Temperature Sensor Specifications

Product name	PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number	PT100, CU50, PT1000, K, E, J, T etc.
Temperature range	-50 to 500ºC
Chip imported from	Heraeus - Germany
Temperature probe	304 stainless steel, plastic or custom material
Accuracy Grade	A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size	4*30mm standard or custom design
Thermal time constant	0.5S
Lead wire options	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC)
Diameter	3mm~16mm
Terminal options	Y type, Pin, XH2.54 or custom
Level of protection	IP68
