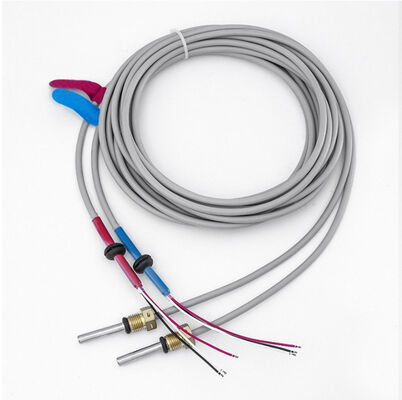

10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

Large Image : 10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	0.5

Contact Now

10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

Description

Nominal Resistance:	5K,8K,10K,15K To 100K	Resistance Tolerance:	±1%,±2%,±3%,±5%,±10%
Material Coefficient:	2500~5000K	Dissipation Coefficient:	≥0.8mw/ºC
Thermal Time Constant:	≤25S	Working Temperature:	-40ºC~+250ºC
Rated Power:	50mw	Lead Wire Type:	#24 30# 2651, UL4411 28#
Temperature Range:	-50 To 500ºC	Accuracy Grade:	A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)
Probe Diameter:	3mm~16mm	Protection Level:	IP68
Thermal Time Constant:	0.5S	Lead Wire Options:	Three Core Sliver Tetrafluoride Shielded Wire, Silicone Wire, Three Core High Temperature Wire, Four Fluorine Wire
Switch Type:	Auto Reset Or Manual Reset
Highlight:	10K thermistor temperature sensor probe , 3950b NTC temperature sensing probe , thermistor probe with high accuracy

10K 3950b Temperature Sensor Thermistor Temperature Sensing Probe

NTC Temperature Sensor

Technical Specifications

Specification Name	Scope	Detection Condition
R25 (nominal resistance value)	5K, 8K, 10K, 15K to 100K	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1, ±2, ±3, ±5, ±10	Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient)	2500~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%)	±1, ±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient)	≥0.8mw/ºC	Static in the air
T (thermal time constant)	≤25S	Static in the air
Ta (Working temperature)	-40ºC~+250ºC
Pn (rated power)	50mw	within working temperature

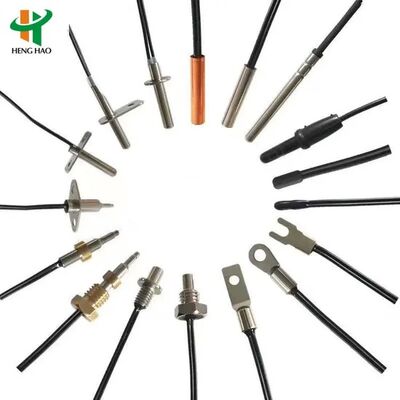

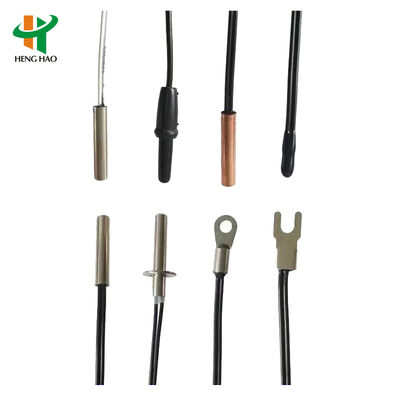

Case and head	Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire	#24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal	Can be riveted according to the requirements of various terminals

Our Services

Your inquiry will be replied within 12 hours
Well-trained and experienced staff are always at your service
Unique design products and many private mold product are waiting for your choice
Strictly protect your private information and your ideas of design

Frequently Asked Questions

Q1. Can I have a sample order for SENSOR?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.

Q3. Do you have any MOQ limit for led waterproof string order?

A: At least 1 for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

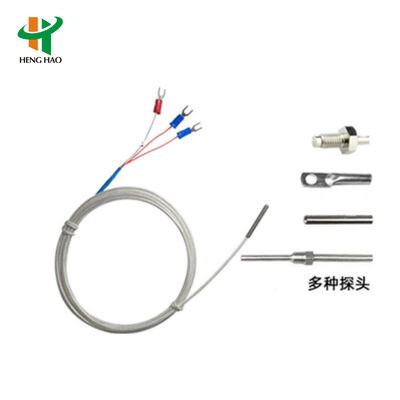

PT100/PT500/PT1000 Temperature Sensor

Product name	PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number	PT100, CU50, PT1000, K, E, J, T etc.
Temperature range	-50 to 500ºC
Chip imported from	Heraeus - Germany
Temperature probe	304 stainless steel, plastic or other according to client's request
Accuracy Grade	A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe	4*30mm, or according to client's request to design.
Thermal time constant	0.5S
Lead wire	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire(-200~200ºC) Three core high temperature wire(-40~450ºC) Four fluorine wire (-50~150ºC)
Dia	3mm~16mm
Terminal	Y type, Pin, XH2.54 or according to client's request.
Level of protection	IP68
