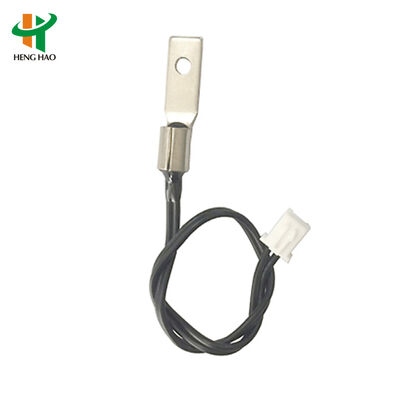

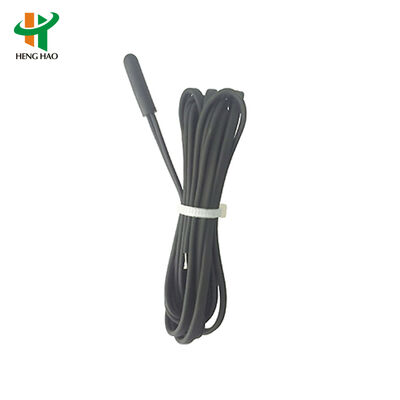

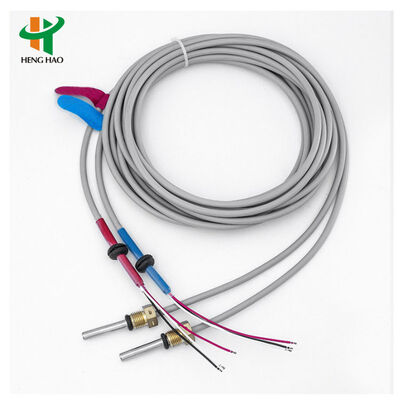

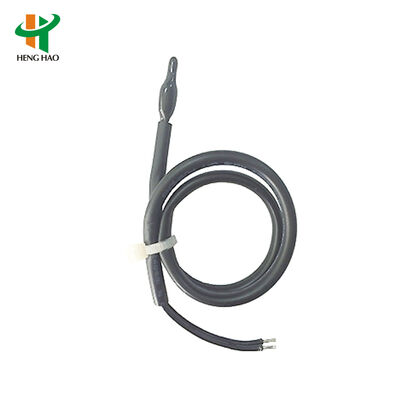

10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor

Large Image : 10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor

Product Details: Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	0.25

Contact Now

10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor

Description

Model NO.:	NTC	Contact Type:	Normally Closed Or Normally Open
Switch Type:	Auto Reset Or Manual Reset	Transport Package:	2000PCS/Carton
Specification:	12*16	Nominal Resistance:	5K,8K,10K,15K To 100K
Resistance Variance:	±1,±2, ±3, ±5, ±10	Material Coefficient:	2500~5000K
Dissipation Coefficient:	≥0.8mw/ºC	Thermal Time Constant:	≤25S
Working Temperature:	-40ºC~+250ºC	Rated Power:	50mw
Lead Wire:	#24 30# 2651, UL4411 28#	Open Temperature Range:	-20ºC To 300ºC
Reset Temperature Range:	5ºC To 270ºC
Highlight:	10K NTC thermistor temperature sensor , 100K temperature probe thermistor , 3950b thermistor temperature sensor

10K Temperature Probe 100K Temperature Sensor 10K 3950b Thermistor

NTC Temperature Sensor Specifications

Specification Name	Scope	Detection Condition
R25 (nominal resistance value)	5K, 8K, 10K, 15K to 100K	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1, ±2, ±3, ±5, ±10	Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient)	2500~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%)	±1, ±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient)	≥0.8mw/ºC	Static in the air
T (thermal time constant)	≤25S	Static in the air
Ta (Working temperature)	-40ºC~+250ºC
Pn (rated power)	50mw	within working temperature

Customization Options

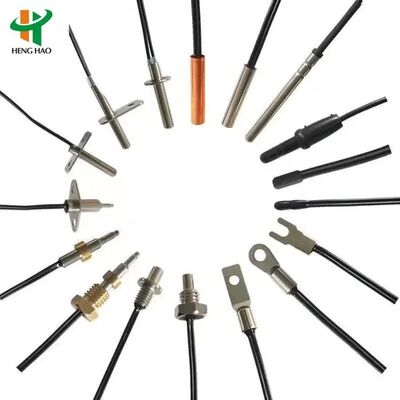

Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
Terminal: Can be riveted according to the requirements of various terminals

Our Services

Your inquiry will be replied within 12 hours
Well-trained and experienced staff are always at your service
Unique design products and many private mold product are waiting for your choice
Strictly protect your private information and your ideas of design

Frequently Asked Questions

Q1. Can I have a sample order for SENSOR?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.

Q3. Do you have any MOQ limit for led waterproof string order?

A: At least 1 for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

KSD301 Temperature Control Specifications

Temperature sensing components consist of bimetallic strip for precise temperature control.

Open temp.	Reset temp.	Open temp.	Reset temp.	Open temp.	Reset temp.
-20ºC±5ºC	5ºC±5ºC	95ºC±5ºC	80ºC±5ºC	205ºC±5ºC	175ºC±10ºC
-15ºC±5ºC	5ºC±5ºC	100ºC±5ºC	80ºC±10ºC	210ºC±5ºC	180ºC±10ºC
-10ºC±5ºC	5ºC±5ºC	105ºC±5ºC	85ºC±10ºC	215ºC±5ºC	185ºC±10ºC
0ºC±5ºC	-10ºC±5ºC	110ºC±5ºC	90ºC±10ºC	220ºC±5ºC	190ºC±10ºC
5ºC±5C	-5ºC±5ºC	115ºC±5ºC	95ºC±10ºC	225ºC±5ºC	195ºC±10ºC

Applications

Widely used in household electric appliances including coffee pots, automatic toasters, laminators, electric water pots, steam guns, steam irons, wind warmers, microwave ovens, water dispensers, etc.
