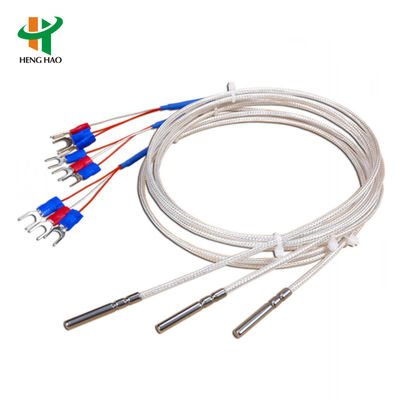

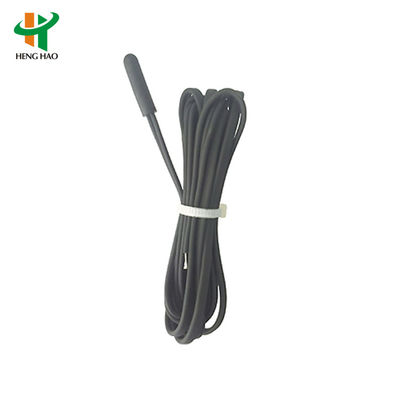

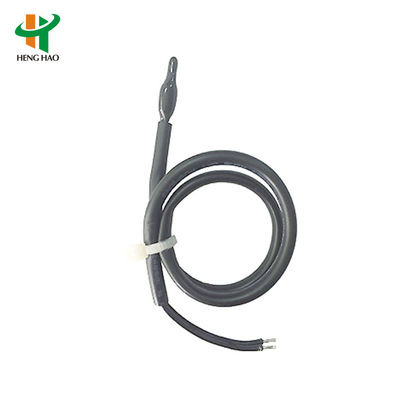

NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K

NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K
NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K
NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K

Large Image :  NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K

Product Details:
Place of Origin: DONGGUAN
Brand Name: HENGHAO
Certification: UL
Model Number: NTC
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD0.15 to USD1.5
Packaging Details: hezhang
Delivery Time: 7 to 10 days
Payment Terms: T/T,D/P,D/A,Western Union
Supply Ability: 1000000PCS PER MONTH
Contact Now

NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K

Description
B Value: 5K 10K 50K 100K PT100 J K Head: Metal Or Plastic
Wire: 2464 2651 2468 CL2 FT4 Terminal: 2p 4p Terminals
Sensor Type: NTC
Highlight:

Thermistor Temperature Sensing Wire Harness

,

Temperature Sensor Thermistor

,

Temperature Sensing Wire Harness

Temperature Sensing Wire Harness Temperature Sensor Thermistor
Technical Specifications
Specification Name Scope Detection Condition
R25(nominal resistance value) 5K,8K,10K,15K to 100K Constant temperature 25℃±0.05℃
R25 Permissible variance(%) ±1,±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 or B25/85(material coefficient) 2500~5000K Constant temperature 25℃±0.05℃ Constant temperature 85℃±0.05℃
B25/50 Value permissible variance(%) ±1,±2 Constant temperature 25℃±0.05℃ Constant temperature 50℃±0.05℃
∫(dissipation coefficient) ≥0.8mw/℃ Static in the air
T(thermal time constant) ≤25S Static in the air
Ta(Working temperature) -40℃~+250℃
Pn (rated power) 50mw within working temperature
Configuration Options

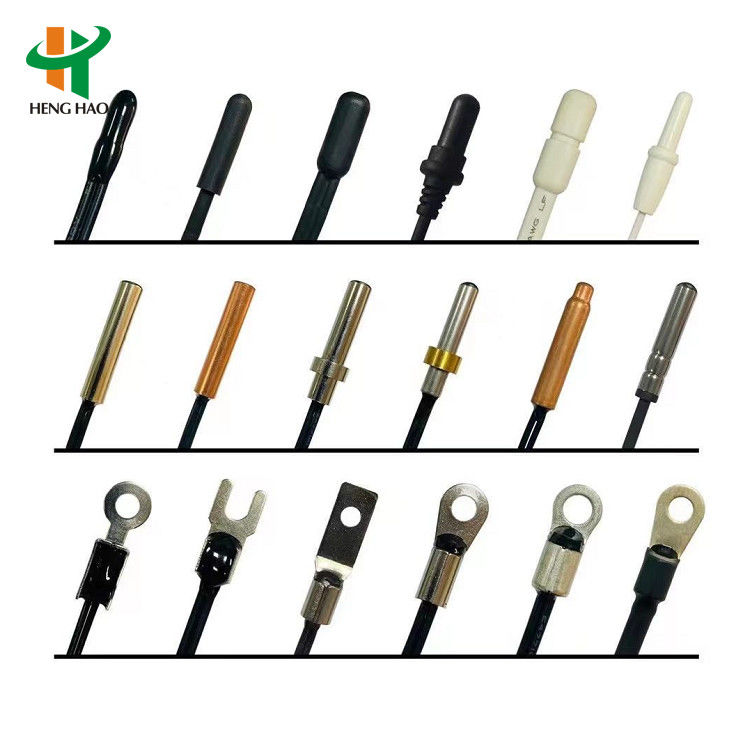

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K 0

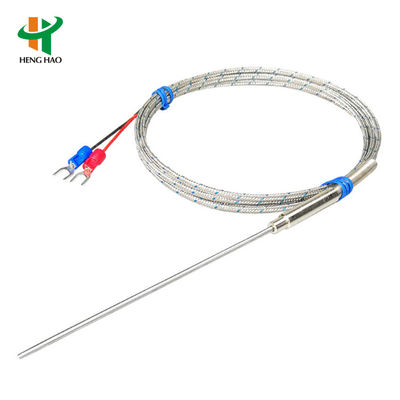

PT100 Temperature Sensor Specifications
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50,PT1000,K,E,J,T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)
Temperature probe 4*30mm, or according to client's request to design
Thermal time constant 0.5S
Lead wire Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire(-200~200ºC)
Three core high temperature wire(-40~450ºC)
Four fluorine wire (-50~150ºC)
Dia 3mm~16mm
terminal Y type, Pin,XH2.54 or according to client's request
Level of protection IP68
NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K 1 NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K 2 NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire and 2p 4p Terminals for B25/50 or B25/85 2500~5000K 3
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
