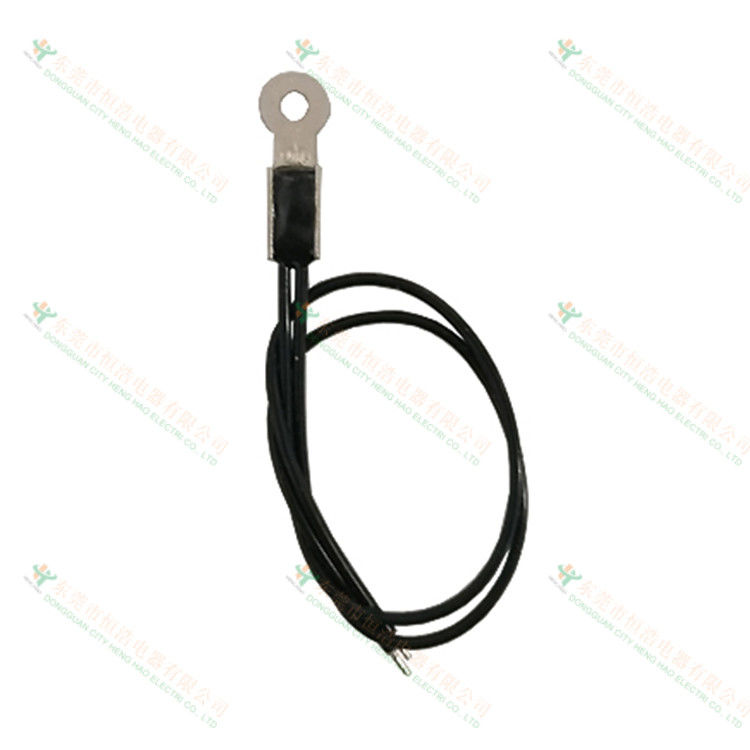

High Sensitivity Double Layer Sealing NTC Temperature Sensor

High Sensitivity Double Layer Sealing NTC Temperature Sensor
High Sensitivity Double Layer Sealing NTC Temperature Sensor High Sensitivity Double Layer Sealing NTC Temperature Sensor High Sensitivity Double Layer Sealing NTC Temperature Sensor High Sensitivity Double Layer Sealing NTC Temperature Sensor High Sensitivity Double Layer Sealing NTC Temperature Sensor High Sensitivity Double Layer Sealing NTC Temperature Sensor

Large Image :  High Sensitivity Double Layer Sealing NTC Temperature Sensor

Product Details:
Place of Origin: CHINA
Brand Name: HENG HAO
Certification: UL CQC TUV ROHS
Model Number: NA
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Delivery Time: 10 DAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH

High Sensitivity Double Layer Sealing NTC Temperature Sensor

Description
MATERAILS: Copper, Ntc Thermistor Silicon Use For: Cookers And Irons
High Light:

Double Layer Sealing NTC Temperature Sensor

,

High Sensitivity NTC Temperature Sensor

,

Double Layer Sealing NTC Temp Sensor

Temperature sensor NTC thermistor for cookers and irons





FEATURES

  1. Connect the various types of wire with high-precision and high-reliable NTC thermistors,and use insulating, hot-conduction and waterproof to seal to the necessary shape for installing and measuring temperature at a long distance

  2. With brand-new process, stable performance, available for long term and steady work (offset rate of annual resistance value)

  3. High precision of resistance and B value, good consistency, allowable exchange(resistance value and B value can specifically reach ±1%)

  4. High sensitivity,quick reaction

  5. Adopt double-layer sealing process, and possess good insulationg sealing and anti-mechanical-collision and anti-bending capability acailable for sealing accoriding to the used installation conditions,convenient for users to install

  6. Available for making high-dissipatong products, and test current can be far larger than sensors of traditional structure, which makes the application circuit simplofied.



PURPOSE

  1. Temperature measurement of various complete sets of products

  2. Temperature control

  3. Temperature-adjustment circuit and long distance measurement



APPLICABLE SCOPE

Applicable for temperature measurement and control of induction cookers, irons, electric barrettes, water heater, drinking machine, warm air blower, dishwasher, disinfecting cabinet, washing machine, drying machine, medium and low temperature drying box, constant temperature box



MAIN TECHNICAL SPECIFICATIONS

Specification Name Scope Detection Condition
R25(nominal resistance value) 500Ω~5MΩ Constant temperature 25℃±0.05℃
R25 Permissible variance(%) ±1,±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 (material coefficient)(thermal-sensitivity index) 2500~5000K

Constant temperature 25℃±0.05℃

Constant temperature 50℃±0.05℃

B25/50 Value permissible variance(%) ±1,±2

Constant temperature 25℃±0.05℃

Constant temperature 50℃±0.05℃

∫(dissipation coefficient) ≥0.8mw/℃ Static in the air
T(thermal time constant) ≤25S Static in the air
Ta(Working temperature) -40℃~+120℃
Pn (rated power) 50mw within working temperature

High Sensitivity Double Layer Sealing NTC Temperature Sensor 0
