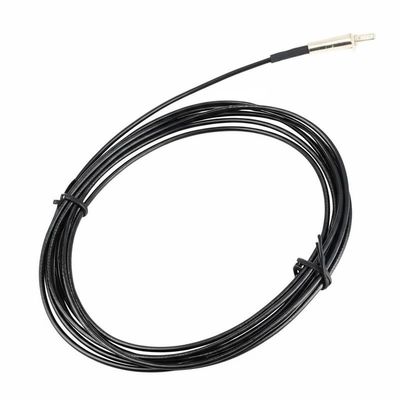

High Sensitivity NTC Thermistor Temperature Sensor with Precision Grade A and Stainless Steel Probe

Large Image : High Sensitivity NTC Thermistor Temperature Sensor with Precision Grade A and Stainless Steel Probe

Product Details:

Place of Origin:	DONGGUAN
Brand Name:	HENGHAO
Certification:	UL
Model Number:	NTC

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	USD0.15 to USD1.5
Packaging Details:	hezhang
Delivery Time:	7 to 10 days
Payment Terms:	T/T,D/P,D/A,Western Union
Supply Ability:	1000000PCS PER MONTH

Contact Now

High Sensitivity NTC Thermistor Temperature Sensor with Precision Grade A and Stainless Steel Probe

Description

B Value:	5K 10K 50K 100K PT100 J K	Head:	Metal Or Plastic
Wire:	2464 2651 2468 CL2 FT4	Terminal:	2p 4p Terminals
Sensor Type:	NTC
Highlight:	3977K Temperature Sensor , NTC Temperature Sensor , 10K Temperature Sensor

Temperature Sensor 10K 3950K 3435K 3977K Temperature Sensor, NTC PT100 Temperature Probe

NTC Temperature Sensor Specifications

Specification Name	Scope	Detection Condition
R25 (nominal resistance value)	5K, 8K, 10K, 15K to 100K	Constant temperature 25℃±0.05℃
R25 Permissible variance(%)	±1, ±2, ±3, ±5, ±10	Constant temperature 25℃±0.05℃
B25/50 or B25/85 (material coefficient)	2500~5000K	Constant temperature 25℃±0.05℃, 85℃±0.05℃
B25/50 Value permissible variance(%)	±1, ±2	Constant temperature 25℃±0.05℃, 50℃±0.05℃
∫ (dissipation coefficient)	≥0.8mw/℃	Static in the air
T (thermal time constant)	≤25S	Static in the air
Ta (Working temperature)	-40℃~+250℃
Pn (rated power)	50mw	Within working temperature

Configuration Options

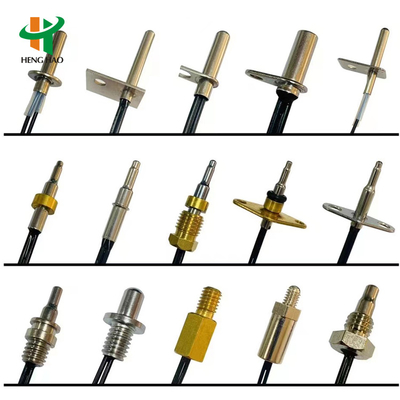

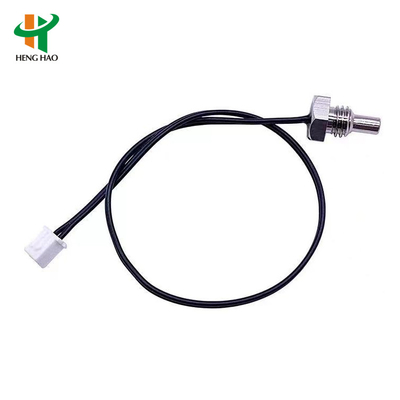

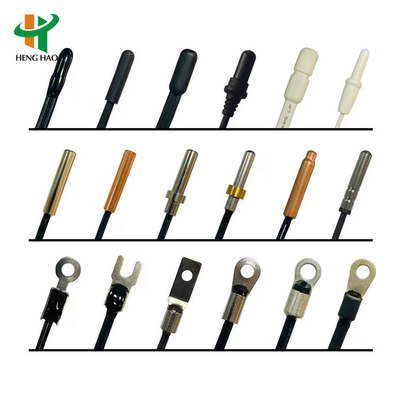

Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or custom design
Lead wire: #24 30# 2651, UL4411 28#, double wired conductor, or custom specification
Terminal: Custom riveting available for various terminal requirements

PT100/PT500/PT1000 Temperature Sensor

Product Specification	Details
Product name	PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number	PT100, CU50, PT1000, K, E, J, T etc.
Temperature range	-50 to 500ºC
Chip imported from	Heraeus - Germany

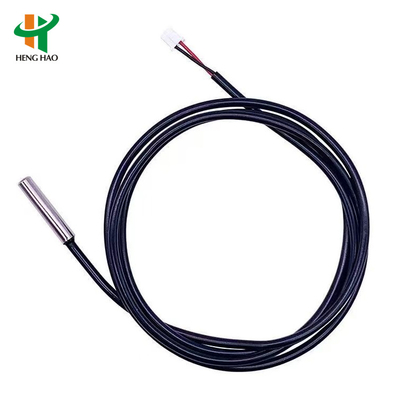

Temperature probe	304 stainless steel, plastic or custom material
Accuracy Grade	A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size	4*30mm standard or custom dimensions
Thermal time constant	0.5S
Lead wire options	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC)
Diameter	3mm~16mm
Terminal options	Y type, Pin, XH2.54 or custom design
Level of protection	IP68

Our Services

Quick response to inquiries within 12 hours
Experienced technical support team available
Custom design capabilities and private mold products
Strict confidentiality of client information and designs

Frequently Asked Questions

Q1. Can I have a sample order for SENSOR?

A: Yes, we welcome sample orders for quality testing. Mixed samples are acceptable.

Q2. What about the lead time?

A: Samples require 3-5 days, mass production takes 1-2 weeks depending on order quantity.

Q3. Do you have any MOQ limit for led waterproof string order?

A: Minimum order quantity is 1 unit for sample evaluation.

Q4. How do you ship the goods and how long does it take to arrive?

A: We ship via DHL, UPS, FedEx or TNT (3-5 days delivery). Air and sea freight options available.
