Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance

Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance
Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance
Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance

Large Image :  Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: NTC
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: USD 0.3~0.6PCS
Packaging Details: 2000PCS/CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 1000000PCS PER MONTH
Contact Now

Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V1A
Contact Type: Normally Closed Or Normally Open. Switch Type: Auto Reset Or Manual Reset
Highlight:

Pt100 Thermistor Temperature probe

,

Sensor Temperature probe

Pt100 Thermistor NTC Thermocouple Sensor Temperature Probe
Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance 0
Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25℃±0.05℃
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25℃±0.05℃ Constant temperature 85℃±0.05℃
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25℃±0.05℃ Constant temperature 50℃±0.05℃
∫ (dissipation coefficient) ≥0.8mw/℃ Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40℃~+250℃
Pn (rated power) 50mw Within working temperature
Customization Options

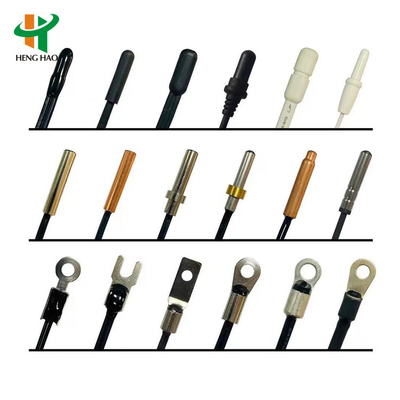

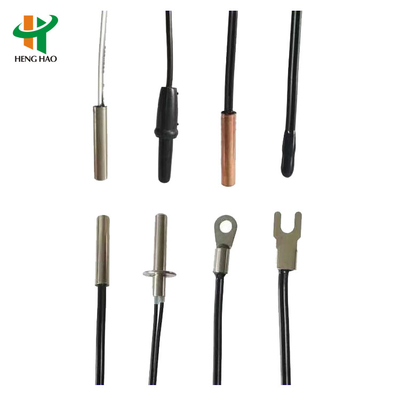

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

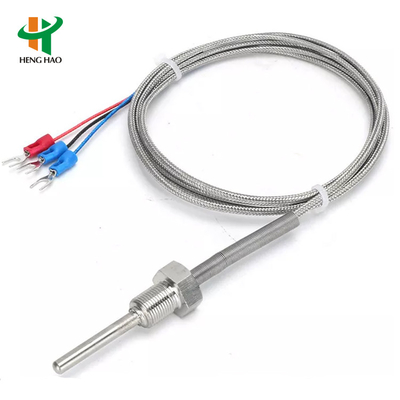

PT100/PT500/PT1000 Temperature Sensor Specifications
Pt100 NTC Temperature Sensor with 100000 Cycles 250V1A and R25 5K to 100K Resistance 1
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size 4*30mm, or according to client's request to design
Thermal time constant 0.5S
Lead wire options Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal options Y type, Pin, XH2.54 or according to client's request
Level of protection IP68

Tag:

100K NTC Thermistor Temperature Sensor,

100K Negative Temperature Coefficient Sensor,

Single End Glass Sealed Automotive Thermistor
