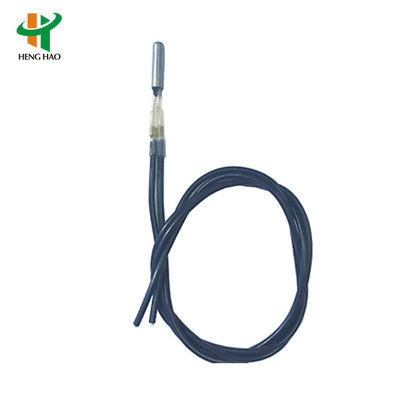

NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe

NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe
NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe
NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe

Large Image :  NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe

Product Details:
Place of Origin: CHINA
Brand Name: HENGHAO
Certification: UL
Model Number: NTC
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: USD 0.5PCS
Packaging Details: 2100PCS/CARTON
Delivery Time: 10~15WORKDAYS
Payment Terms: T/T
Supply Ability: 10000000PERMONTH
Contact Now

NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe

Description
Life Cycle: 100000 Cycles Voltage & Current: 250V 16A
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Highlight:

Platinum Resistor Temperature Sensing Probe

,

3950 Temperature Sensing Probe

,

NTC 10K Temperature Sensing Probe

NTC 10K 3950 Temperature Sensing Probe with Wire Harness

High-precision platinum resistor temperature sensor with versatile configuration options for industrial applications.

Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25℃±0.05℃
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 or B25/85 (thermal-sensitivity index) 2500~5000K Constant temperature 25℃±0.05℃ Constant temperature 85℃±0.05℃
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25℃±0.05℃ Constant temperature 50℃±0.05℃
∫ (dissipation coefficient) ≥0.8mw/℃ Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40℃~+250℃
Pn (rated power) 50mw Within working temperature
Configuration Options

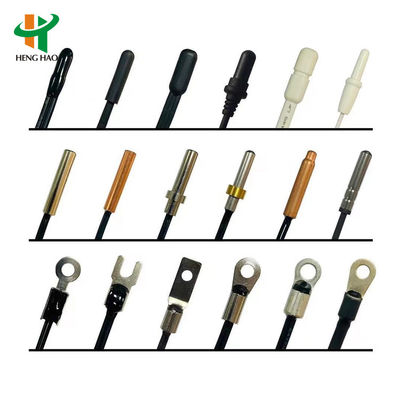

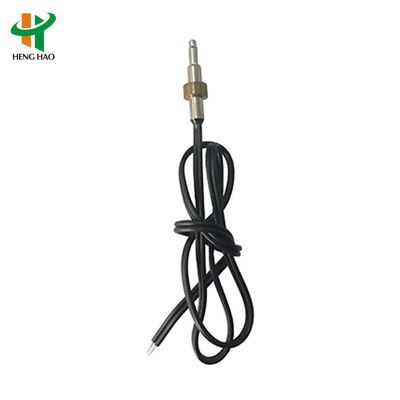

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or custom design
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor, or custom specification
  • Terminal: Custom riveting available for various terminal requirements
NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe 0 NTC Temperature Sensor with 100000 Cycles 250V 16A and R25 5K to 100K Platinum Resistor Temperature Sensing Probe 1
Our Services
  • 12-hour response time for all inquiries
  • Experienced technical support team
  • Custom design capabilities with private mold options
  • Strict confidentiality protection for your designs
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Minimum 1 piece for sample checking is available.
Q4. How do you ship the goods?
A: We ship via DHL, UPS, FedEx or TNT (3-5 days). Airline and sea shipping also available.

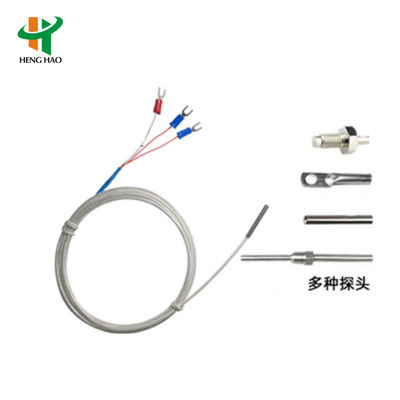

PT100/PT500/PT1000 Temperature Sensor Options
Product Feature Specification
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip source Heraeus - Germany
Temperature probe 304 stainless steel, plastic or custom material
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Probe dimensions 4*30mm standard or custom design
Thermal time constant 0.5S
Lead wire options Three core sliver tetrafluoride shielded wire (-50~200ºC), Silicone wire (-200~200ºC), Three core high temperature wire (-40~450ºC), Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal options Y type, Pin, XH2.54 or custom design
Protection level IP68
