NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S

NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S
NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S
NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S

Large Image :  NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S

Product Details:
Place of Origin: DONGGUAN
Brand Name: HENGHAO
Certification: UL
Model Number: NTC
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD0.15 to USD1.5
Packaging Details: hezhang
Delivery Time: 7 to 10 days
Payment Terms: T/T,D/P,D/A,Western Union
Supply Ability: 1000000PCS PER MONTH
Contact Now

NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S

Description
B Value: 5K 10K 50K 100K PT100 J K Head: Metal Or Plastic
Wire: 2464 2651 2468 CL2 FT4 Terminal: 2p 4p Terminals
Sensor Type: NTC
Highlight:

RTD Temperature Sensor

,

Thermocouple Temperature Sensor

,

Thermistor Temperature Sensor

Thermocouple Temperature Sensor Thermistor RTD Resistance Temperature Detector
Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25℃±0.05℃
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25℃±0.05℃ Constant temperature 85℃±0.05℃
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25℃±0.05℃ Constant temperature 50℃±0.05℃
∫ (dissipation coefficient) ≥0.8mw/℃ Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40℃~+250℃
Pn (rated power) 50mw within working temperature
Configuration Options

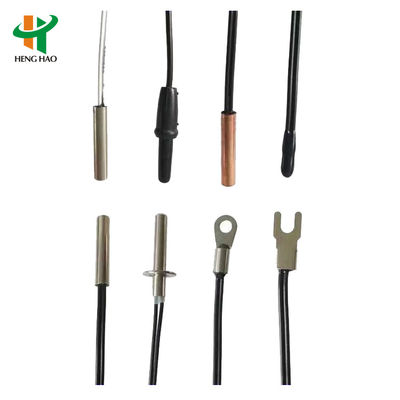

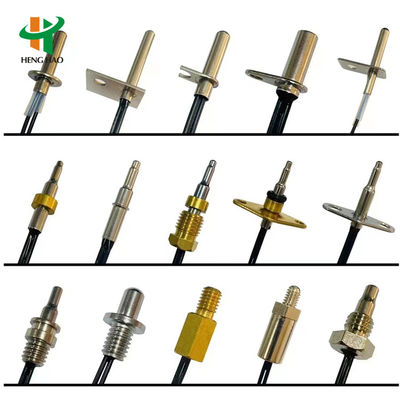

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals

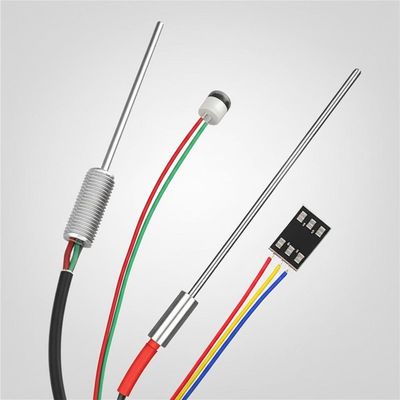

PT100 Temperature Sensor Specifications
Feature Specification
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50, PT1000, K, E, J, T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature probe size 4*30mm, or according to client's request to design
Thermal time constant 0.5S
Lead wire options Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire (-200~200ºC)
Three core high temperature wire (-40~450ºC)
Four fluorine wire (-50~150ºC)
Diameter 3mm~16mm
Terminal Y type, Pin, XH2.54 or according to client's request
Level of protection IP68
NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S 0 NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S 1 NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S 2 NTC Thermistor Temperature Sensor with B25/50 and B25/85 Material Coefficient and Thermal Time Constant ≤25S 3
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Tag:

100K NTC Thermistor Temperature Sensor,

100K Negative Temperature Coefficient Sensor,

Single End Glass Sealed Automotive Thermistor
