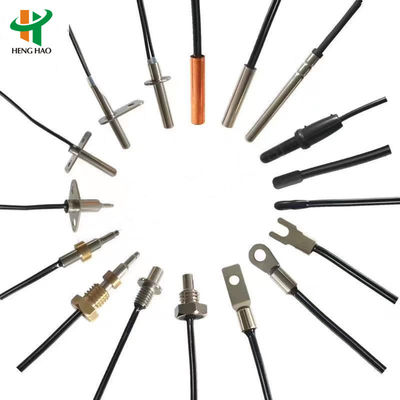

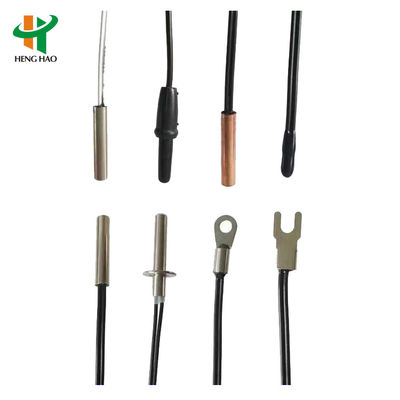

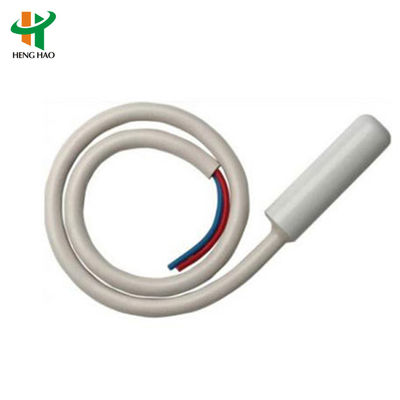

RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85

RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85
RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85
RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85

Large Image :  RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85

Product Details:
Place of Origin: DONGGUAN
Brand Name: HENGHAO
Certification: UL
Model Number: NTC
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: USD0.15 to USD1.5
Packaging Details: hezhang
Delivery Time: 7 to 10 days
Payment Terms: T/T,D/P,D/A,Western Union
Supply Ability: 1000000PCS PER MONTH
Contact Now

RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85

Description
B Value: 5K 10K 50K 100K PT100 J K Head: Metal Or Plastic
Wire: 2464 2651 2468 CL2 FT4 Terminal: 2p 4p Terminals
Sensor Type: NTC
Highlight:

RTD Resistance Temperature Detector

,

50K NTC PT100 Temperature Probe

,

3950K NTC PT100 Temperature Probe

RTD Resistance Temperature Detector 50K 3950K 3977K Temperature Sensor NTC PT100 Temperature Probe
RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 0
Specifications
Specification Name Scope Detection Condition
R25(nominal resistance value) 5K,8K,10K,15K to 100K Constant temperature 25℃±0.05℃
R25 Permissible variance(%) ±1,±2, ±3, ±5, ±10 Constant temperature 25℃±0.05℃
B25/50 or B25/85(material coefficient)(thermal-sensitivity index) 2500~5000K Constant temperature 25℃±0.05℃ Constant temperature 85℃±0.05℃
B25/50 Value permissible variance(%) ±1,±2 Constant temperature 25℃±0.05℃ Constant temperature 50℃±0.05℃
∫(dissipation coefficient) ≥0.8mw/℃ Static in the air
T(thermal time constant) ≤25S Static in the air
Ta(Working temperature) -40℃~+250℃
Pn (rated power) 50mw within working temperature
Case and head Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal Can be riveted according to the requirements of various terminals
RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 1

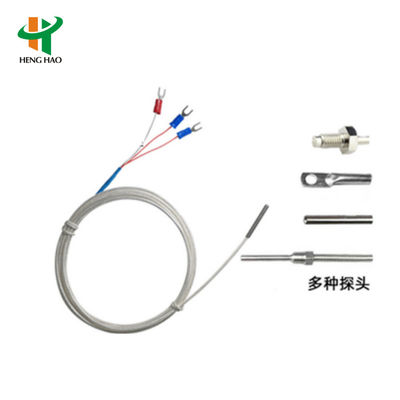

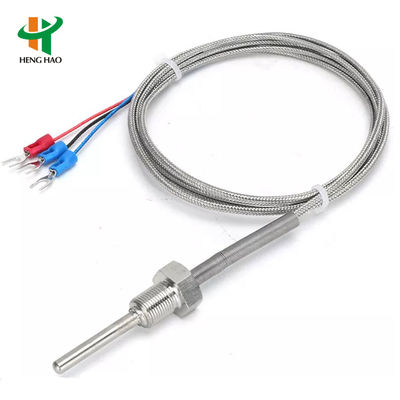

PT100/PT500/PT1000 Temperature Sensor
Product name PT100 temperature sensor (Thermocouples, hot resistance)
Graduation number PT100, CU50,PT1000,K,E,J,T etc.
Temperature range -50 to 500ºC
Chip imported from Heraeus - Germany
Temperature probe 304 stainless steel, plastic or other according to client's request
Accuracy Grade A Grade (0.1),B Grade(0.3),2B Grade (0.5),1/3 B Grade(0.1)
Temperature probe 4*30mm, or according to client's request to design.
Thermal time constant 0.5S
Lead wire Three core sliver tetrafluoride shielded wire (-50~200ºC)
Silicone wire(-200~200ºC)
Three core high temperature wire(-40~450ºC)
Four fluorine wire (-50~150ºC)
Dia 3mm~16mm
terminal Y type, Pin,XH2.54 or according to client's request.
Level of protection IP68
RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 2 RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 3 RTD Resistance Temperature Detector NTC Thermistor Temperature Sensor with 2464 2651 2468 CL2 FT4 Wire 2p 4p Terminals and B25/50 or B25/85 4
