Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor

Large Image : Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor

Product Details:

Certification:	RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	1,000
Price:	0.5

Contact Now

Manufacturer Outlet Ot Ring Ntc Temperature Sensor 1K 5K 10K 50K 100K Thermistor

Description

Model NO.:	NTC	Contact Type:	Contactless
Output Signal:	Thermistor	Production Process:	Injection
Material:	Resistive Lithium Chloride	IP Rating:	IP65
Head Type:	Metal Or Plastic Tube	B Value:	3950K 3435K 3977K PT100
Nominal Resistance:	5K,8K,10K,15K To 100K	B25/50 Value:	2500~5000K
Dissipation Coefficient:	≥0.8mw/ºC	Thermal Time Constant:	≤25S
Working Temperature:	-40ºC~+250ºC	Rated Power:	50mw
Temperature Range:	-50 To 500ºC
Highlight:	NTC thermistor temperature sensor 10K , 1K thermistor temperature sensor with warranty , 100K NTC temperature sensor manufacturer outlet

Manufacturer Outlet OT Ring NTC Temperature Sensor (1K 5K 10K 50K 100K Thermistor)

NTC Temperature Sensor Specifications

Specification Name	Scope	Detection Condition
R25 (nominal resistance value)	5K, 8K, 10K, 15K to 100K	Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%)	±1, ±2, ±3, ±5, ±10	Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient)	2500~5000K	Constant temperature 25ºC±0.05ºC Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%)	±1, ±2	Constant temperature 25ºC±0.05ºC Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient)	≥0.8mw/ºC	Static in the air
T (thermal time constant)	≤25S	Static in the air
Ta (Working temperature)	-40ºC~+250ºC
Pn (rated power)	50mw	Within working temperature

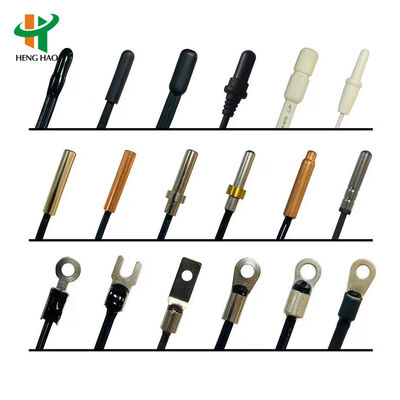

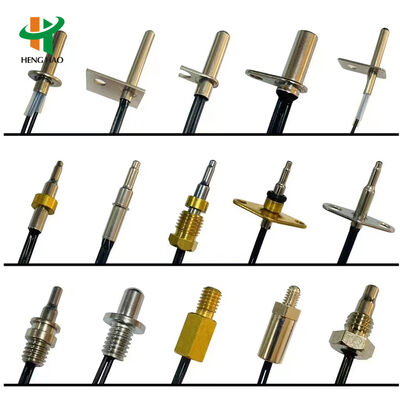

Case and Head Options: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or custom according to client's drawing.

Lead Wire Options: #24 30# 2651, UL4411 28#, double wired conductor and others, or custom according to client's request.

Terminal Options: Can be riveted according to the requirements of various terminals.

PT100/PT500/PT1000 Temperature Sensor

Product Name	PT100 temperature sensor (Thermocouples, hot resistance)
Graduation Number	PT100, CU50, PT1000, K, E, J, T etc.
Temperature Range	-50 to 500ºC
Chip Imported From	Heraeus - Germany
Temperature Probe	304 stainless steel, plastic or other according to client's request
Accuracy Grade	A Grade (0.1), B Grade(0.3), 2B Grade (0.5), 1/3 B Grade(0.1)
Temperature Probe Size	4*30mm, or custom according to client's request
Thermal Time Constant	0.5S
Lead Wire Options	Three core sliver tetrafluoride shielded wire (-50~200ºC) Silicone wire (-200~200ºC) Three core high temperature wire (-40~450ºC) Four fluorine wire (-50~150ºC)
Diameter	3mm~16mm
Terminal Options	Y type, Pin, XH2.54 or custom according to client's request
Level of Protection	IP68

Our Services

Your inquiry will be replied within 12 hours
Well-trained and experienced staff are always at your service
Unique design products and many private mold product are waiting for your choice
Strictly protect your private information and your ideas of design

Frequently Asked Questions

Q1. Can I have a sample order for SENSOR?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.

Q3. Do you have any MOQ limit for led waterproof string order?

A: At least 1 for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.

Tag:

Contact Person: Cherry Lee

Tel: +86-13431163393

Fax: 86-769-82657011
