Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe

Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe
Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe

Large Image :  Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe

Product Details:
Certification: ISO
Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.5
Contact Now

Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe

Description
Model NO.: NTC Contact: Contactless
Output Signal: Digital Type Production Process: Injection
Material: Resistive Lithium Chloride Measuring Medium: Humidity
IP Rating: IP65 Life Cycle: 100000 Cycles
Voltage: 9V Current: 1A
Temperature Range: 0-250℃ Case: Metal
Specification: 12*16 Nominal Resistance: 5K,8K,10K,15K To 100K
Working Temperature: -40ºC~+250ºC
Highlight:

NTC thermistor temperature probe

,

NTC thermocouple temperature sensor

,

thermistor temperature sensor with warranty

NTC Temperature Sensor - Thermistor Thermocouple Temperature Probe
Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe 0 Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe 1 Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe 2
Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw Within working temperature
Customization Options

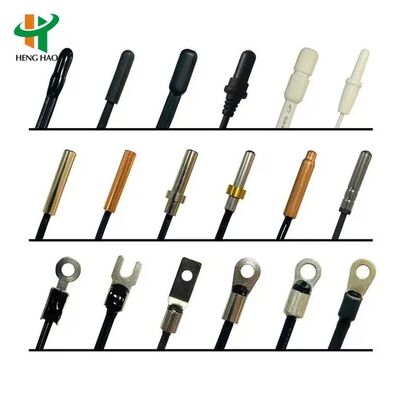

  • Case and head: Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
  • Lead wire: #24 30# 2651, UL4411 28#, double wired conductor and more, or according to client's request
  • Terminal: Can be riveted according to the requirements of various terminals
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold products available
  • Strict protection of your private information and design ideas
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: At least 1 for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT (3-5 days). Airline and sea shipping also available.
Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe 3 Temperature Sensor Ntc Thermistor Ntc Thermocouple Temperature Probe 4

Tag:

100K NTC Thermistor Temperature Sensor,

100K Negative Temperature Coefficient Sensor,

Single End Glass Sealed Automotive Thermistor
