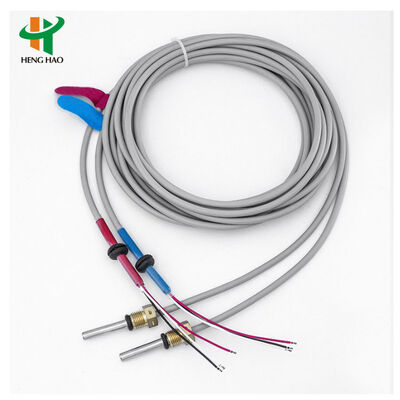

Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe

Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe
Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe

Large Image :  Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe

Product Details:
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.5
Contact Now

Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe

Description
Model NO.: NTC Contact Type: Contactless
Output Signal: Digital Type Production Process: Normal Wirewound
Material: Resistive Lithium Chloride Measuring Medium: Humidity
IP Rating: IP68 Life Cycle: 100000 Cycles
Voltage & Current: 9V 1A Switch Type: Auto Reset Or Manual Reset
Specification: 12*16 Nominal Resistance: 5K,8K,10K,15K To 100K
Material Coefficient: 2500~5000K Working Temperature: -40ºC~+250ºC
Rated Power: 50mw
Highlight:

RTD temperature sensing probe

,

NTC thermistor temperature sensor

,

resistance temperature detector probe

RTD Resistance Temperature Detector NTC Temperature Sensing Probe
NTC Temperature Sensor
Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe 0 Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe 1 Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe 2
Technical Specifications
Specification Name Scope Detection Condition
R25 (nominal resistance value) 5K, 8K, 10K, 15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1, ±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85 (material coefficient) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1, ±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫ (dissipation coefficient) ≥0.8mw/ºC Static in the air
T (thermal time constant) ≤25S Static in the air
Ta (Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature

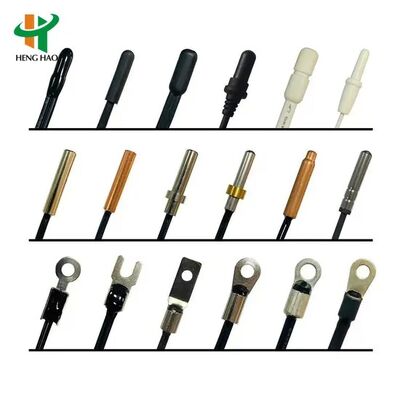

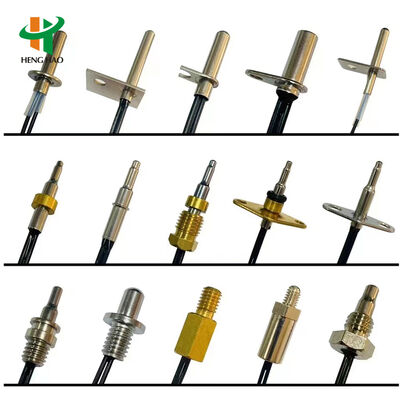

Case and head Fork head, O ring head, drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal Can be riveted according to the requirements of various terminals
Our Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
Frequently Asked Questions
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe 3 Rtd Resistance Temperature Detector Ntc Temperature Sensing Probe 4

Tag:

100K NTC Thermistor Temperature Sensor,

100K Negative Temperature Coefficient Sensor,

Single End Glass Sealed Automotive Thermistor
