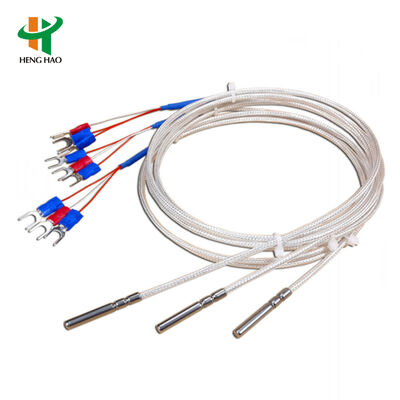

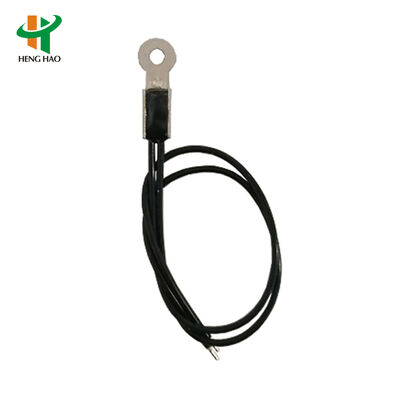

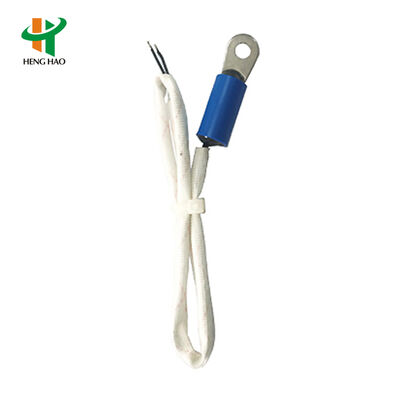

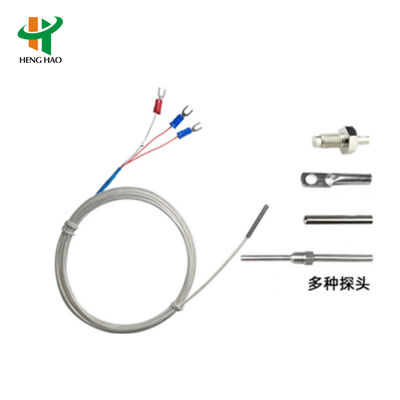

Temperature Sensing Probe PT100 Platinum Resistor

Temperature Sensing Probe PT100 Platinum Resistor
Temperature Sensing Probe PT100 Platinum Resistor Temperature Sensing Probe PT100 Platinum Resistor Temperature Sensing Probe PT100 Platinum Resistor Temperature Sensing Probe PT100 Platinum Resistor Temperature Sensing Probe PT100 Platinum Resistor Temperature Sensing Probe PT100 Platinum Resistor

Large Image :  Temperature Sensing Probe PT100 Platinum Resistor

Product Details:
Certification: CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1,000
Price: 0.5
Contact Now

Temperature Sensing Probe PT100 Platinum Resistor

Description
Model NO.: NTC Output Signal: Analog Type
Production Process: Injection Material: Alumina
Measuring Medium: Humidity IP Rating: IP68
Life Cycle: 100000 Cycles Voltage & Current: 9V1a
Contact Type: Normally Closed Or Normally Open Switch Type: Auto Reset Or Manual Reset
Specification: 12*16 Nominal Resistance: 5K,8K,10K,15K To 100K
Resistance Variance: ±1,±2, ±3, ±5, ±10 Material Coefficient: 2500~5000K
Working Temperature: -40ºC~+250ºC
Highlight:

PT100 temperature probe

,

platinum resistor sensor

,

NTC thermistor temperature probe

Temperature Sensing Probe PT100 Platinum Resistor
NTC Temperature Sensor
Temperature Sensing Probe PT100 Platinum Resistor 0 Temperature Sensing Probe PT100 Platinum Resistor 1 Temperature Sensing Probe PT100 Platinum Resistor 2
Specification Name Scope Detection Condition
R25(nominal resistance value) 5K,8K,10K,15K to 100K Constant temperature 25ºC±0.05ºC
R25 Permissible variance(%) ±1,±2, ±3, ±5, ±10 Constant temperature 25ºC±0.05ºC
B25/50 or B25/85(material coefficient)(thermal-sensitivity index) 2500~5000K Constant temperature 25ºC±0.05ºC
Constant temperature 85ºC±0.05ºC
B25/50 Value permissible variance(%) ±1,±2 Constant temperature 25ºC±0.05ºC
Constant temperature 50ºC±0.05ºC
∫(dissipation coefficient) ≥0.8mw/ºC Static in the air
T(thermal time constant) ≤25S Static in the air
Ta(Working temperature) -40ºC~+250ºC
Pn (rated power) 50mw within working temperature

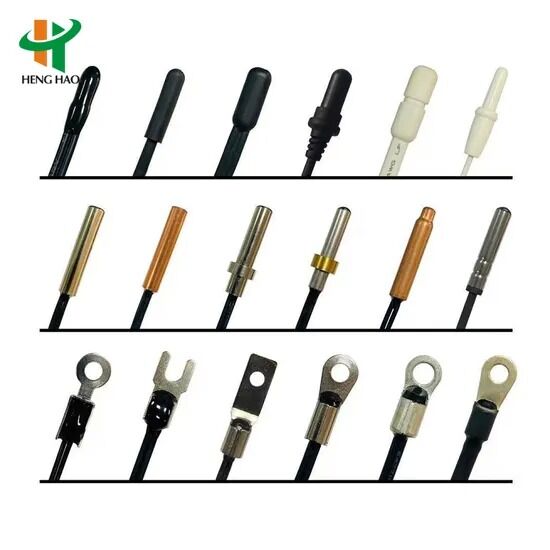

Case and head Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client's drawing
Lead wire #24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client's request.
Terminal Can be riveted according to the requirements of various terminals
Services
  • Your inquiry will be replied within 12 hours
  • Well-trained and experienced staff are always at your service
  • Unique design products and many private mold product are waiting for your choice
  • Strictly protect your private information and your ideas of design
FAQ
Q1. Can I have a sample order for SENSOR?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks based on the amount of your order.
Q3. Do you have any MOQ limit for led waterproof string order?
A: At least 1 for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Temperature Sensing Probe PT100 Platinum Resistor 3 Temperature Sensing Probe PT100 Platinum Resistor 4
